ST6000-MM01-EN_04

Installation Procedure

NOTE:
  • Attach the Isolation Unit to a stable surface. Do not leave the Isolation Unit or USB/RS-422/485 Conversion Adapter hanging by its cord.

  • Be careful with wire placement. Overlapping cords may cause noise.

  • Installing the USB/RS-422/485 Conversion Adapter to this product is the same as the following procedure.

  • For ST-6200WA, attach to any part except this product.

Step

Action

1

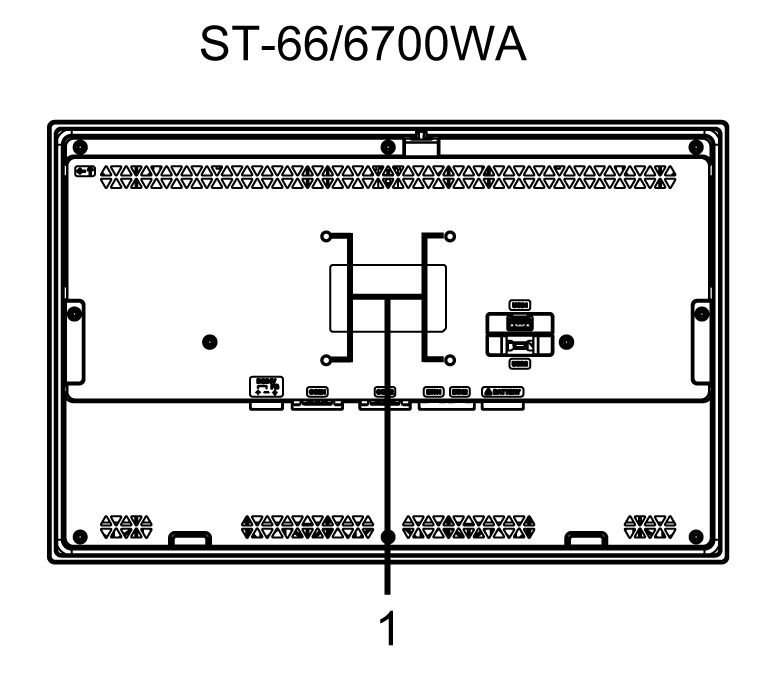

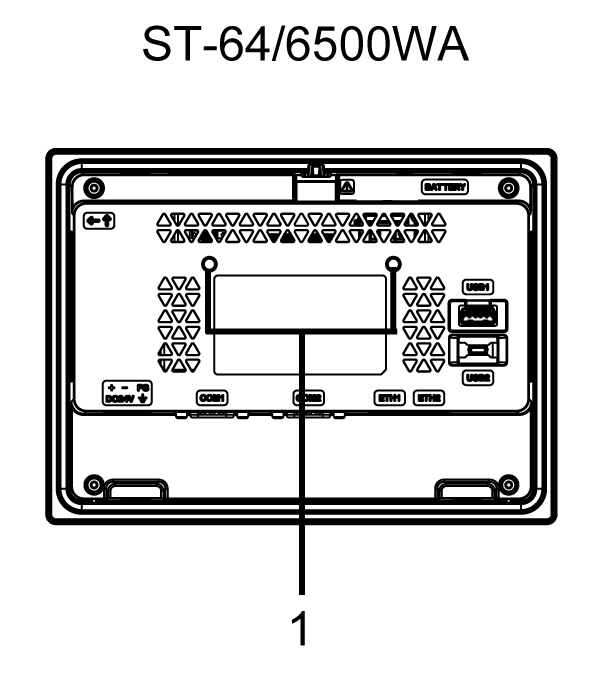

Check the locations of two screw holes on the rear of this product.

1 Screw hole

2

Install one of the two attachment screws included in the Isolation Unit to this product. Use a torque of 0.5 N•m (4.4 lb-in).

1 Attachment screw

A This product

3

Attach the Isolation Unit to this product.

2 Isolation unit

A This product

4

Slide the Isolation Unit in the direction of the arrow so the Isolation Unit is hooked by the screw from Step 2.

A This product

5

Secure the Isolation Unit in place with another attachment screw. Use a torque of 0.5 N•m (4.4 lb-in).

A This product
