ST6000-MM01-EN_04

ST-6400WA

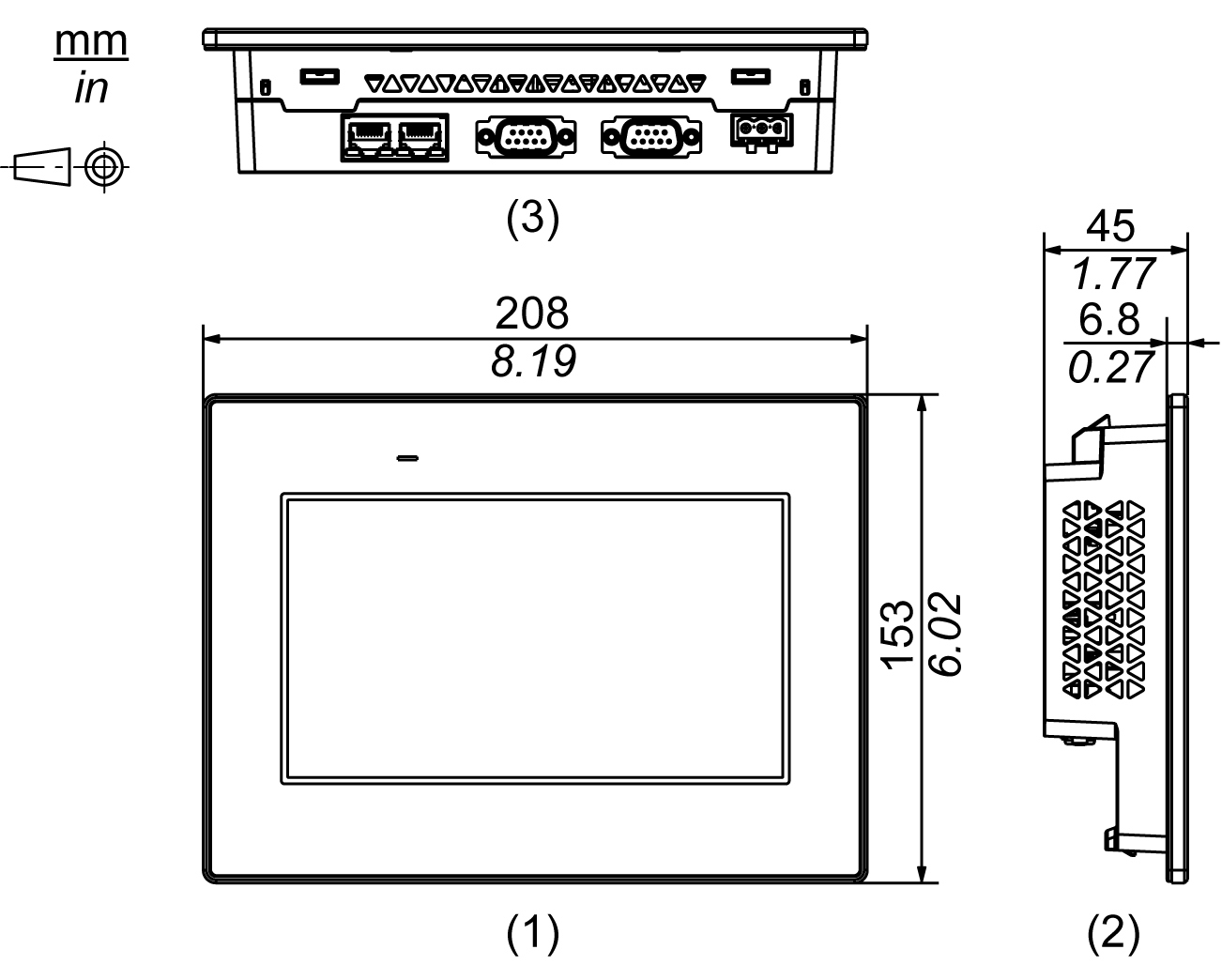

External Dimensions

1 Front

2 Left

3 Bottom

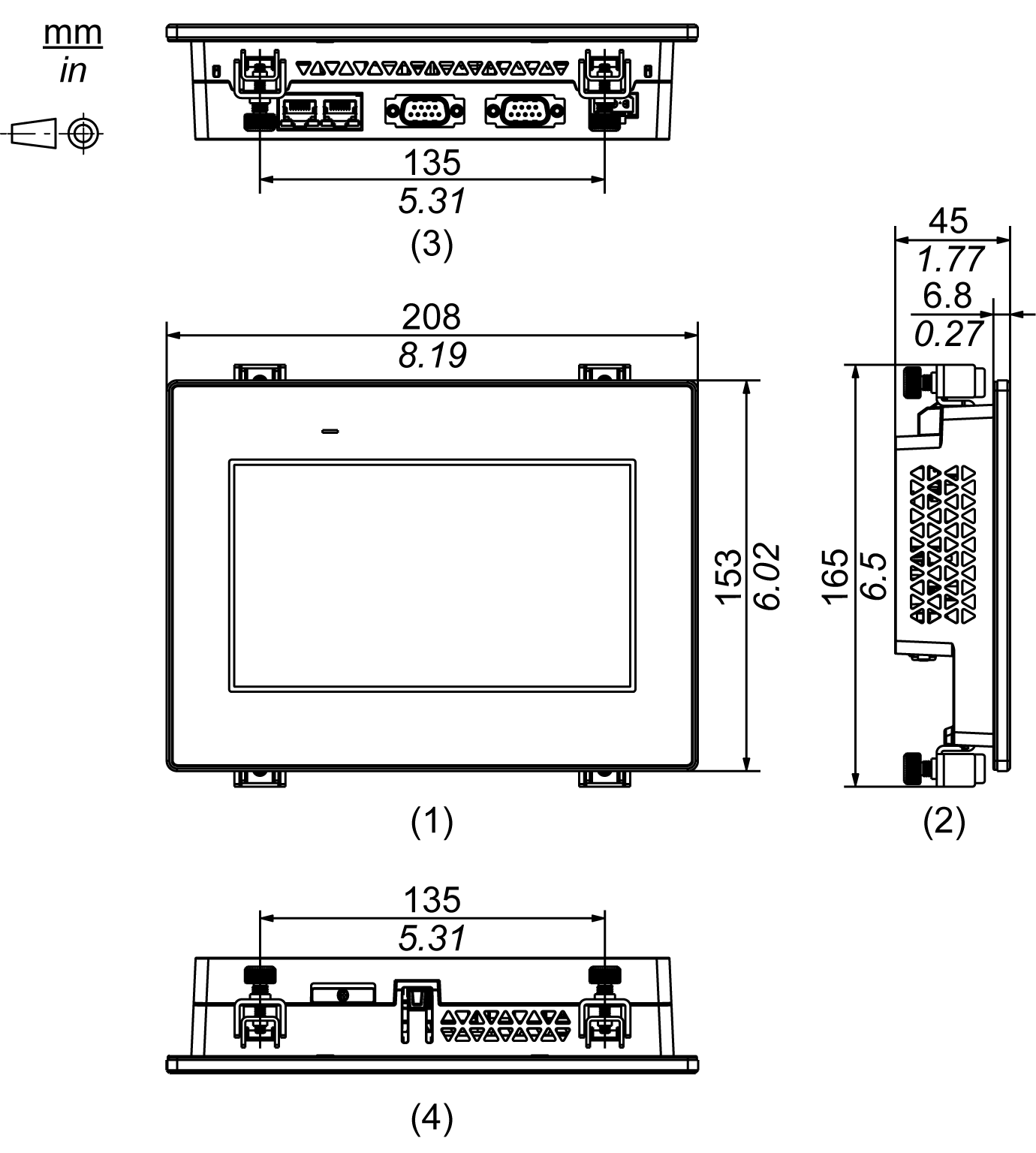

Dimensions with Installation Fasteners

1 Front

2 Left

3 Bottom

4 Top

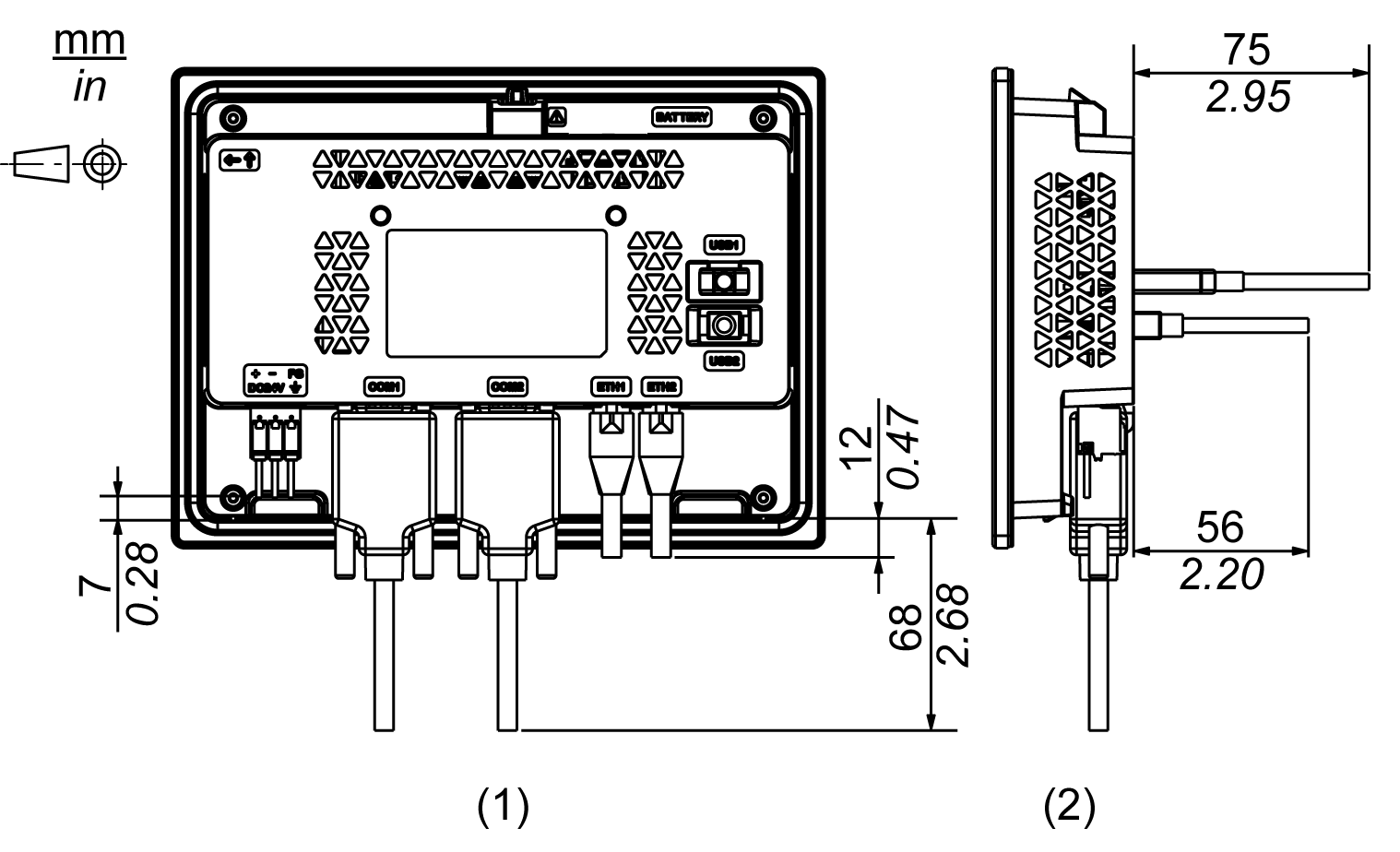

Dimensions with Cables

1 Rear

2 Right

NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use. Therefore, these values are intended for reference only.
