ST6000-MM01-EN_04

Installation Procedure (ST-63/6500TA, ST-64/65/66/6700WA)

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
  • Remove all power from the device before removing any covers or elements of the system, and prior to installing or removing any accessories, hardware, or cables.
  • Unplug the power cable from both this product and the power supply prior to installing or removing the product.
  • Always use a properly rated voltage sensing device to confirm power is off where and when indicated.
  • Replace and secure all covers or elements of the system before applying power to this product.
  • Use only the specified voltage when operating this product. This product is designed to use 24 Vdc. Always check whether your device is DC powered before applying power.
  • When using ST-6•00TA in Class I, Division 2, Groups A, B, C, and D hazardous locations, install this product in an enclosure that prevents the operator from touching the back of this product without the use of tools.
Failure to follow these instructions will result in death or serious injury.
NOTICE
EQUIPMENT DAMAGE
  • Always use the installation gasket.
  • Keep this product stabilized in the panel-cut while you are installing or removing the screw fasteners.
Failure to follow these instructions can result in equipment damage.

Installing Using Installation Fasteners

Step

Action

1

Place this product on a clean and level surface with the screen facing down.

2

Check that this product's gasket is seated securely into the bezel's groove, which runs around the perimeter of the display panel frame.

NOTE: Always use the installation gasket, since it absorbs vibration in addition to repelling water. For the procedure on replacing the installation gasket, refer to Replacing the Installation Gasket.

3

Based on this product's Panel Cut Dimensions, open a mount-hole on the panel and attach this product to the panel from the front side.

NOTE: This product has a hook at the top to prevent it from falling. Insert the bottom part of the product into the panel opening, and then insert the top part while pushing the hook down.

1 Hook

4

Insert the installation fastener hooks into the insertion slots of this product.


1 Insertion slots

2 Insertion slots (ST-6700WA only)

3 Installation fastener

4 Installation panel

5

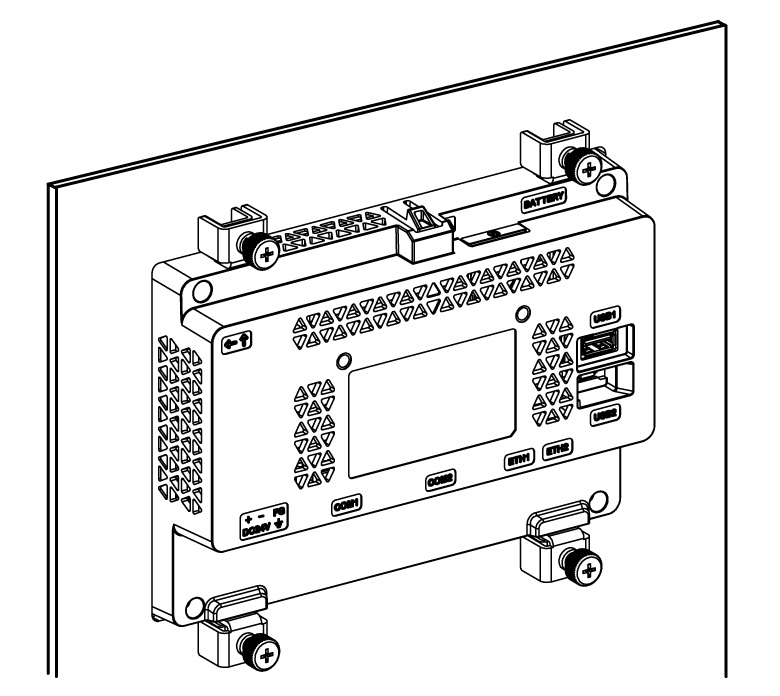

In a clockwise direction, tighten the installation fastener's screws with a screwdriver.

The necessary torque is 0.5 N•m (4.4 lb-in).

NOTE: The installation fasteners can be screwed by hand too.
