Open Box
SP-5B40/SP-5B41
|
Part |
Name |
Description |
|---|---|---|
|

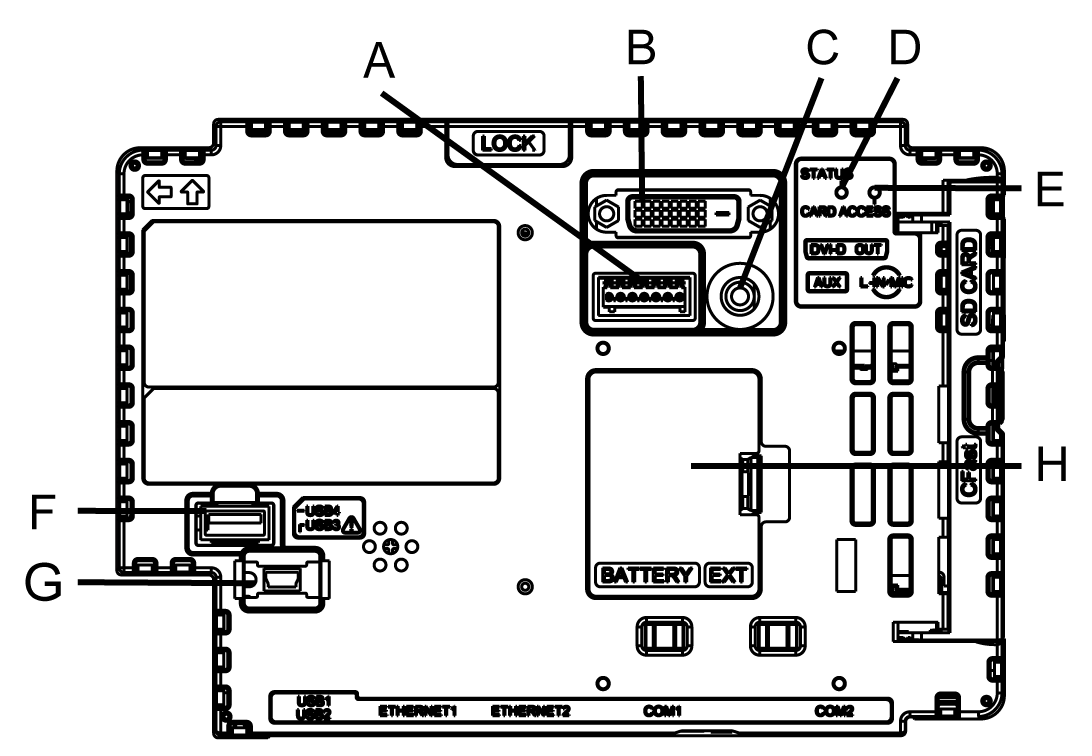

A |
Auxiliary Output/Speaker Output Interface (AUX) |
This interface is Alarm Output or Buzzer Output, and Sound Output. 1 This mark identifies safety messages and notes about AUX Connector. |
|
B |
DVI-D Output Interface |
DVI-D Output Interface |
|
C |
AUDIO Input Interface (L-IN/MIC) |
This interface connects a microphone. Use for mini jack connector (∅3.5 mm [0.14 in]). |
|
D |
Status LED |
Refer to LED Indications. |
|
E |
Card Access LED |
Refer to LED Indications. |
|
F |
USB (Type A) Interface |
Conforms to USB2.0 (Type A) x 1. Power supply voltage: 5 Vdc ±5% Maximum current supplied: 500 mA Maximum transmission distance: 5 m (16.4 ft) |
|
G |
USB (mini-B) Interface |

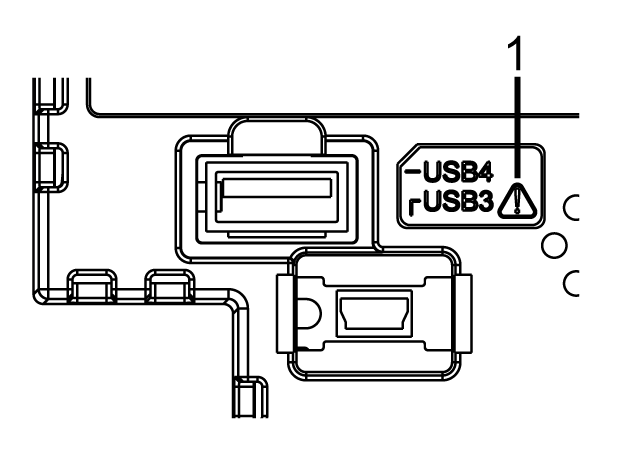

Conforms to USB2.0 (mini-B) x 1. Maximum transmission distance: 5 m (16.4 ft) 1 This mark identifies safety messages about USB Clamp mini-B (1 port). |
|
H |
Expansion Unit Interface Cover (EXT) |
Battery for Memory Backup can be connected or replaced in the Expansion Unit Interface Cover opening. |
|

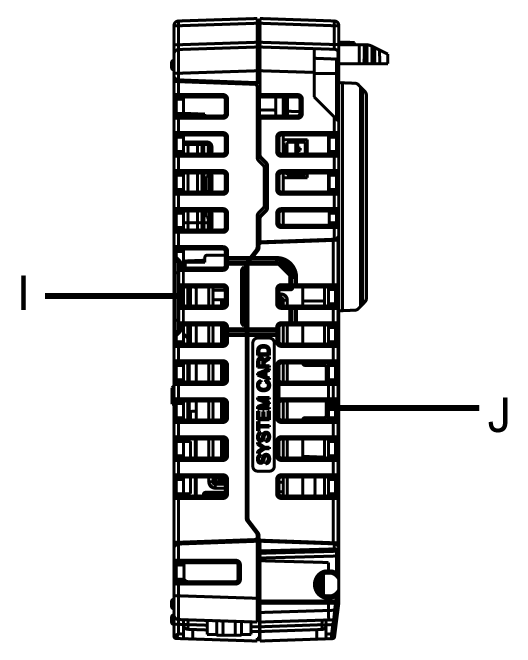

I |
Storage Card Cover |
The SD and CFast Card are located in the Storage Card Cover opening. |
|
J |
System Card Cover |
The system card is located in the System Card Cover opening. Do not open this cover when the Box Module is in operation. |
|

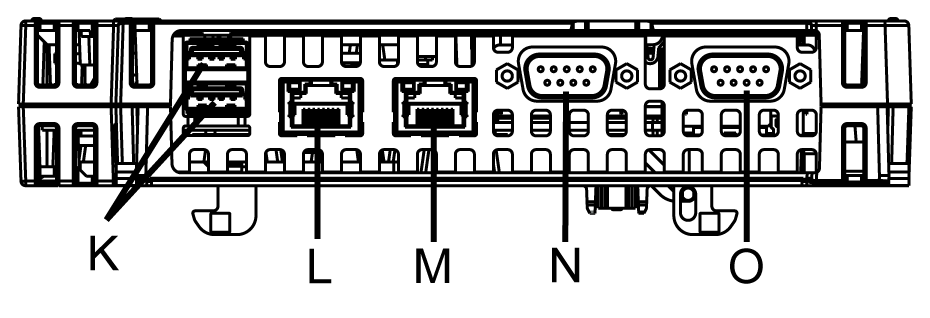

K |
USB (Type A) Interface |
Conforms to USB2.0 (Type A) x 2. Power supply voltage: 5 Vdc ±5% Maximum current supplied: 500 mA Maximum transmission distance: 5 m (16.4 ft) |
|
L |
Ethernet Interface (Ethernet1) |
Ethernet transmission interface (10BASE-T/ 100BASE-TX/ 1000BASE-T) Connector: Modular jack (RJ-45) x 1 |
|
M |
Ethernet Interface (Ethernet2) |
Ethernet transmission interface (10BASE-T/ 100BASE-TX/ 1000BASE-T) Connector: Modular jack (RJ-45) x 1 |
|
N |
Serial Interface (COM1) |
RS-232C/422/485 Serial Interface (you can switch the communication method via software). Connector: D-Sub 9 pin (plug) x 1 |
|
O |
Serial Interface (COM2) |
RS-232C/422/485 Serial Interface (you can switch the communication method via software). Connector: D-Sub 9 pin (plug) x 1 |
|

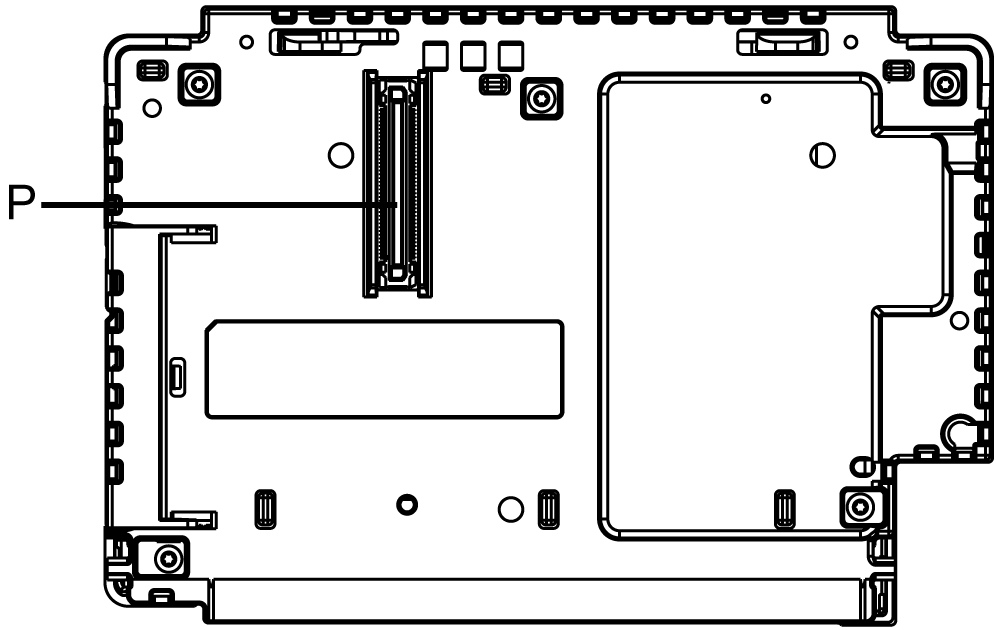

P |
Display Module Interface |
Interface that connects the Display Module and Box Module. |
