Replacing the System Card (CFast Card)

The System Card is a CFast Card with the operating system installed on it.

To replace the System Card, use CFast Card by Pro-face. Refer to Accessories.

NOTICE
LOSS OF DATA
When using a CFast Card:
  • Make sure you regularly back up the CFast Card data since the CFast Card has a life span and accidental data loss can occur at any time.
  • While a CFast Card is accessed, do not turn OFF or reset this product, and do not insert or remove the CFast Card.
  • Turn OFF this product when inserting or removing the CFast Card.
  • Make sure of the CFast Card’s orientation before inserting it into the CFast Card slot.
Failure to follow these instructions can result in equipment damage.
NOTE:
  • For information on backing up your CFast card, which is used as a system card, refer to our support site at https://www.pro-face.com/trans/en/manual/1001.html. You can also use commercially available system backup software.

  • You cannot replace a system card on a Box Module where the model number does not match.

NOTICE
LOSS OF DATA
When handling the CFast Card:
  • Avoid storing the CFast Card where there is static electricity or electromagnetic waves.
  • Avoid storing the CFast Card in direct sunlight, near a heater, or other locations where high temperatures can occur.
  • Do not bend the CFast Card.
  • Do not drop or strike the CFast Card against another object.
  • Keep the CFast Card dry.
  • Do not touch the CFast Card connectors.
  • Do not disassemble or modify the CFast Card.
Failure to follow these instructions can result in equipment damage.

Step

Action

1

Turn OFF this product.

2

Remove the Box Module from the Display Module.

3

As illustrated, open the System Card Cover in the direction of the arrow.

1 System Card Cover

2 Box Module

4

Push the eject button once to release, and pull out the card.

NOTE: After using the CFast card, store the CFast Card in its case or other safe location.

1 Eject button

2 System Card

5

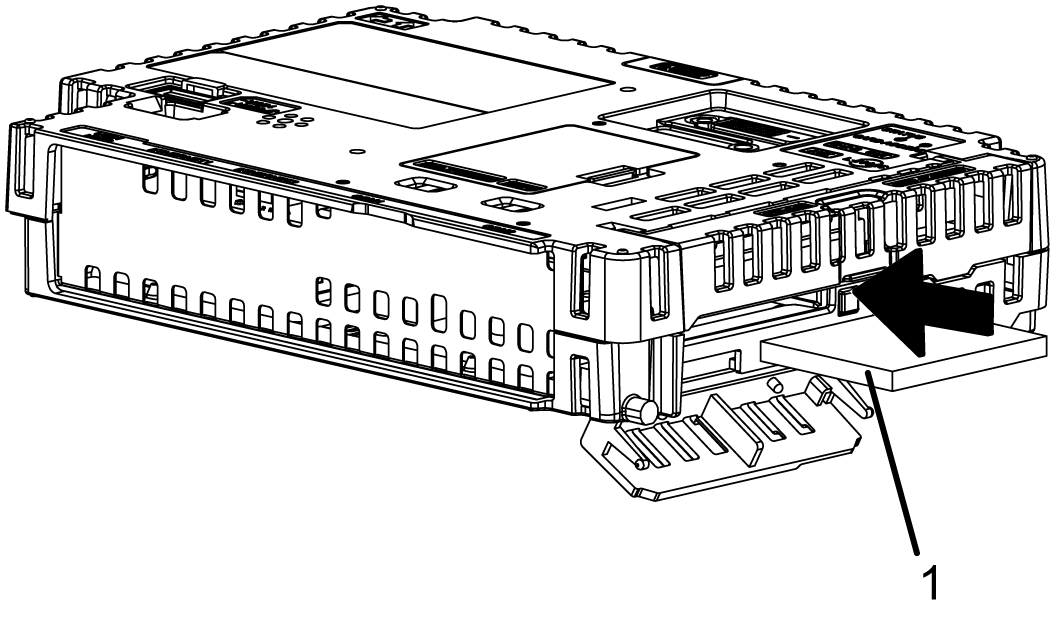

Insert the CFast Card into the System Card Slot with the front face of the CFast Card facing down, and push until the eject button comes out.

1 System Card

6

Close the System Card Cover.

7

Mount the Box Module on the Display Module.
