DVI-D Output Interface

DANGER
ELECTRIC SHOCK AND FIRE
When using the SG terminal to connect an external device to this product:
  • Verify that a ground loop is not created when you set up the system.
  • Connect the SG terminal to remote equipment when the external device is not isolated.
  • Connect the SG terminal to a known reliable ground connection to reduce the risk of damaging the circuit.
Failure to follow these instructions will result in death or serious injury.

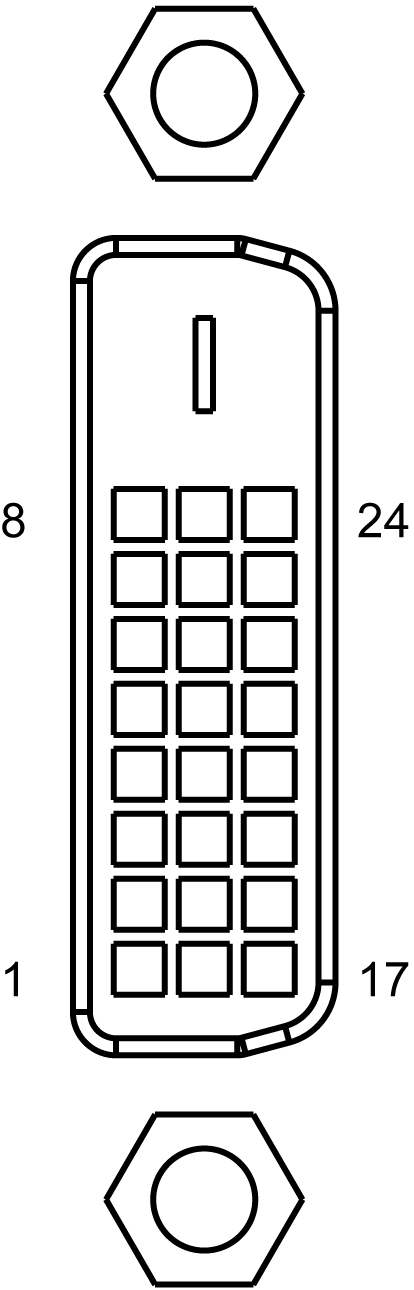

Product side

Pin No.

Signal Name

Direction

1

TMDS DATA 2-

Output

2

TMDS DATA 2+

Output

3

TMDS DATA 2 SHIELD

4

NC

5

NC

6

DDC Clock

Output

7

DDC Data

Input/Output

8

NC

9

TMDS DATA 1-

Output

10

TMDS DATA 1+

Output

11

TMDS DATA 1 SHIELD

12

NC

13

NC

14

+5 Vdc Power

15

GND

Ground

16

SP-5B40: NC

SP-5B41: Hot Plug Detect

SP-5B40: -

SP-5B41: Input

17

TMDS DATA 0-

Output

18

TMDS DATA 0+

Output

19

TMDS DATA 0 SHIELD

20

NC

21

NC

22

TMDS CLOCK SHIELD

23

TMDS CLOCK+

Output

24

TMDS CLOCK-

Output

Shell

FG

Functional Ground

Recommendations:

DVI-D Cable by Pro-face (FP-DV01-50 <5 m>)

NOTE:
  • For noise-free operation, use the recommended DVI-D cable.

  • The following notes are only for SP-5B40:

    - DVI-D output supports display resolutions up to XGA (1,024 x 768). When the screen output mode is set to clone mode, the maximum display resolution of the display module is the same as the display resolution of DVI-D output, which is XGA (1,024 x 768).

    - DVI-D output does not support Hot Plug Detect (HPD). Even when the main unit power is on while connected to an external display, this product outputs the display signal as XGA. If the external display does not support XGA Input, the screen will not display.
