Installing Box Module

Install the Box Module to the Display Module or DC Power Supply Adapter for Box Module.

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
  • Remove all power from the device before removing any covers or elements of the system, and prior to installing or removing any accessories, hardware, or cables.
  • Unplug the power cable from both the Display Module or DC Power Supply Adapter for Box Module and the power supply.
  • Always use a properly rated voltage sensing device to confirm power is off.
  • Replace and secure all covers or elements of the system before applying power to the Display Module or DC Power Supply Adapter for Box Module.
Failure to follow these instructions will result in death or serious injury.
NOTICE
EQUIPMENT DAMAGE
  • When mounting this product vertically, before attaching to the panel, install the Box Module onto the Display Module or DC Power Supply Adapter for Box Module.
  • When installing the Box Module onto the Display Module or DC Power Supply Adapter for Box Module, place the Display Module or DC Power Supply Adapter for Box Module on a clean and level surface with the screen facing downward.
  • Allow only qualified personnel to change the primary battery.
Failure to follow these instructions can result in equipment damage.

Step

Action

1

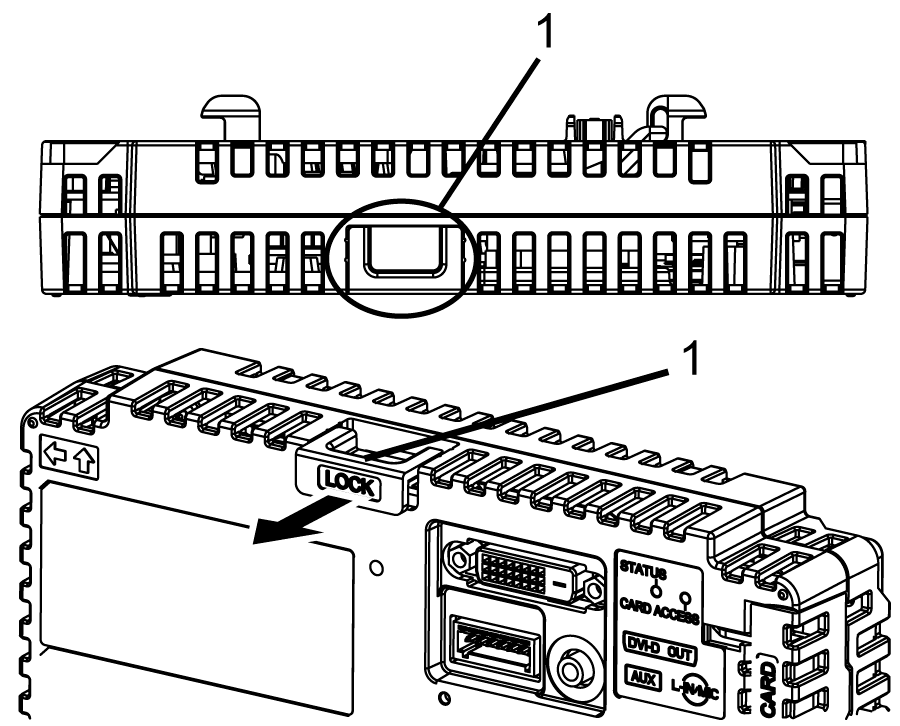

Pull the LOCK forward on the top of the Box Module to release the lock as illustrated.

1 LOCK

2

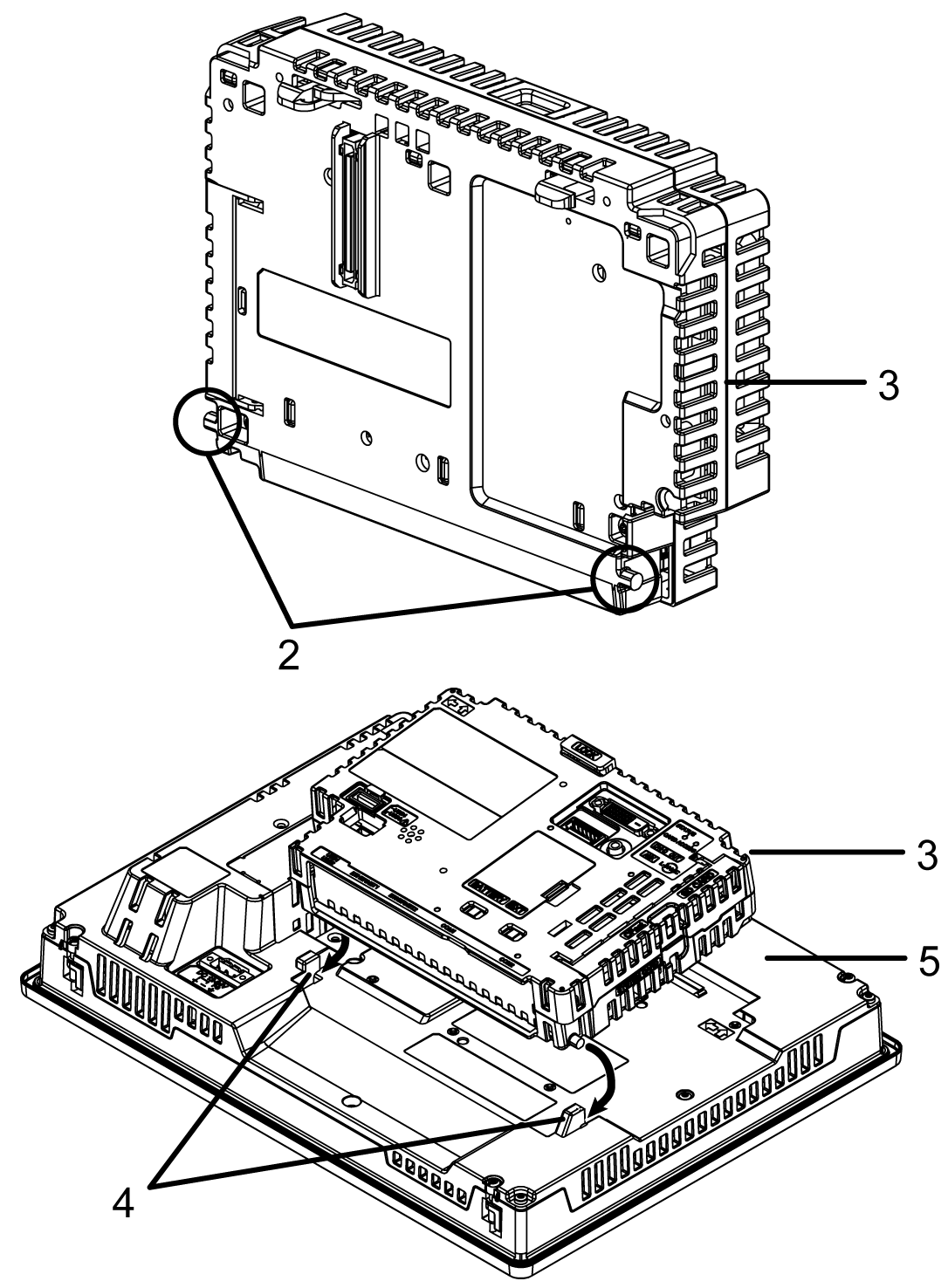

Insert the protruding points on the bottom left and right of the Box Module into the two holes on the back of the Display Module or DC Power Supply Adapter for Box Module to attach the Box Module.

2 Protruding points

3 Box Module

4 Holes for insertion

5 Display Module or DC Power Supply Adapter for Box Module

3

Fully push on the LOCK on the top of the Box Module to mount the Box Module on the Display Module or DC Power Supply Adapter for Box Module.

1 LOCK

NOTE: For instructions on how to mount the Display Module to the panel, refer to Installing to the Panel. Refer to the DC Power Supply Adapter for Box Module Installation Guide on how to mount the DC Power Supply Adapter for Box Module to the panel.
