SP5000X-MM01-EN_05

System Design

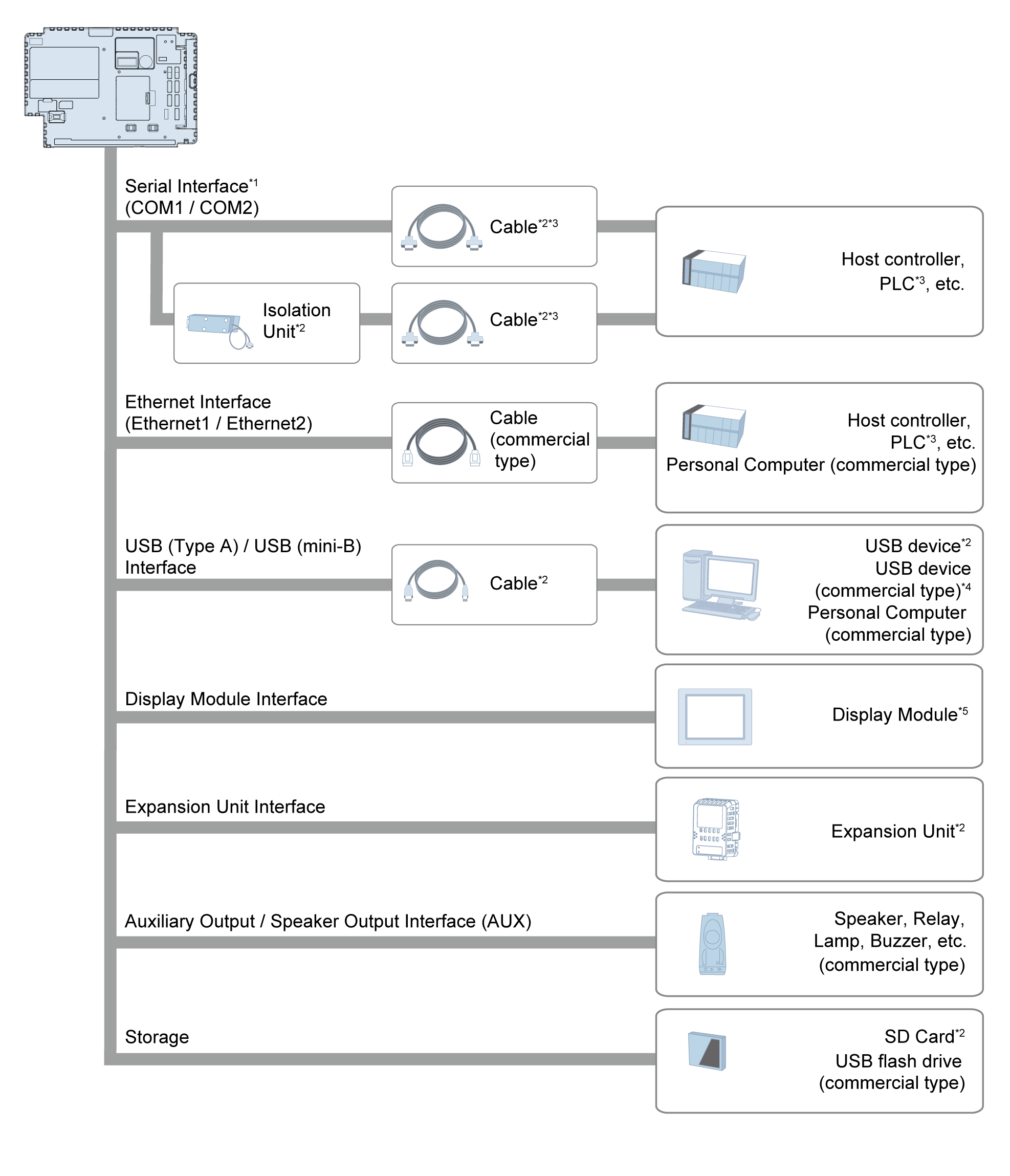

Box Module

*1 In order to use this as an isolation port, Isolation Unit is required. To use RS-232C isolation unit, set the #9 pin of the COM port to VCC.

*2 Refer to Accessories.

*3 For information on how to connect controllers and other types of equipment, refer to the corresponding device driver manual of your screen editing software.

*4 For supported models, refer to our support site at https://www.pro-face.com/trans/en/manual/1001.html .

*5 Connects only to eXtreme Display. Refer to the Model Numbers.

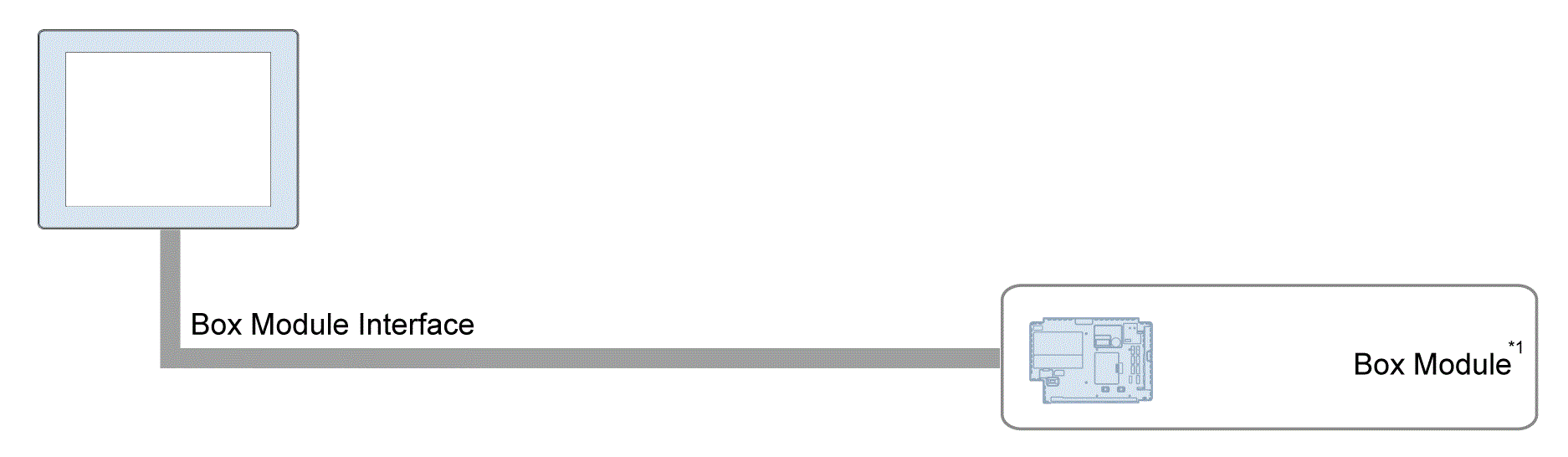

Display Module

*1 Connects only to eXtreme Box.
