SP5000X-MM01-EN_05

Installing to the Box Module

You can install the Isolation Unit or USB/RS-422/485 Conversion Adapter to the back of the Box Module or to the installation panel. For more information on how to attach the Isolation Unit or USB/RS-422/485 Conversion Adapter to the installation panel, please refer to the product installation guide.

NOTE:
  • Installing the USB/RS-422/485 Conversion Adapter to the Box Module is the same as the following procedures.

  • When the fixing bracket is attached, you cannot attach the isolation unit nor the USB/RS-422/485 conversion adapter.

Step

Action

1

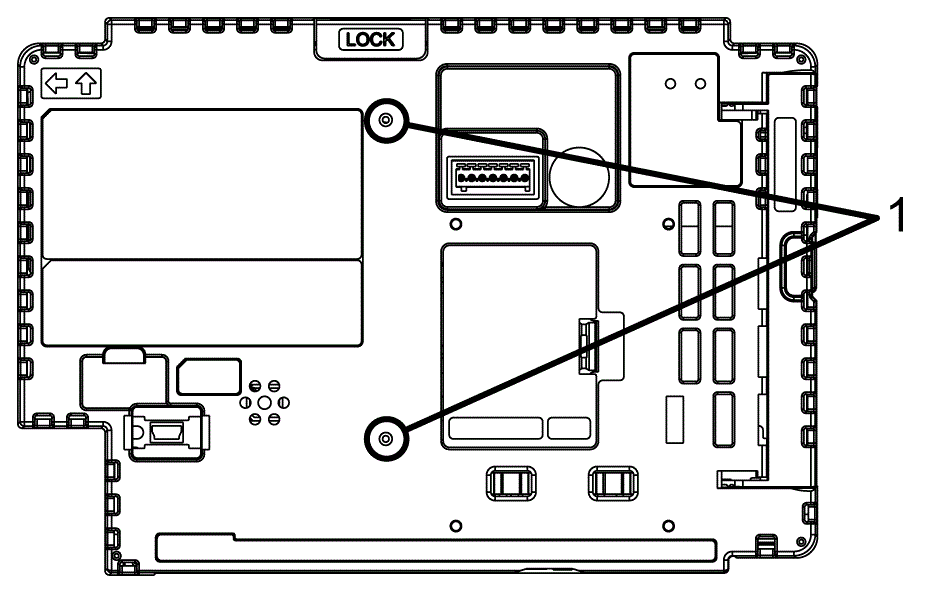

Check the locations of two screw holes on the front of the Box Module.

1 Screw hole

2

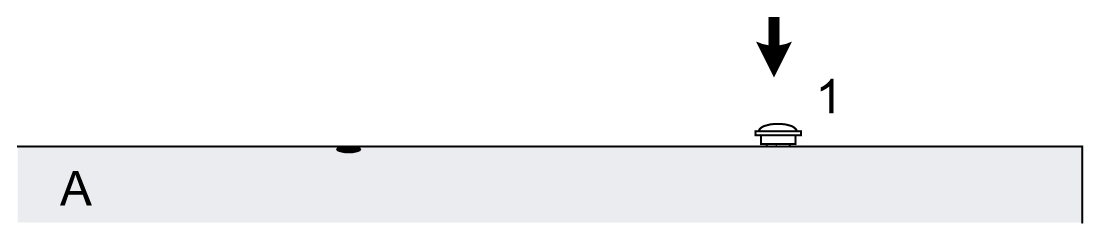

Install one of the two attachment screws included in the Isolation Unit to the Box Module. Use a torque of 0.5 N•m (4.4 lb-in).

1 Attachment screw

A Box Module

3

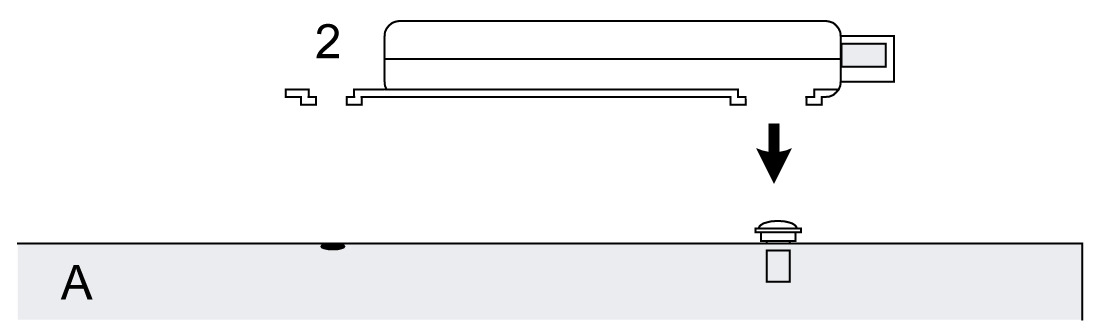

Attach the Isolation Unit to the Box Module.

2 Isolation Unit

A Box Module

4

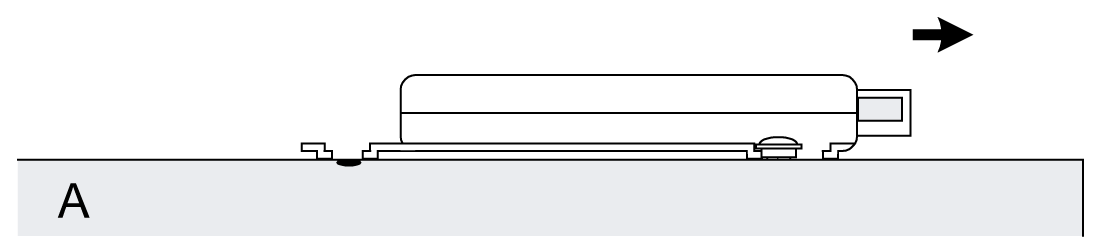

Slide the Isolation Unit in the direction of the arrow so the Isolation Unit is hooked by the screw from Step 2.

A Box Module

5

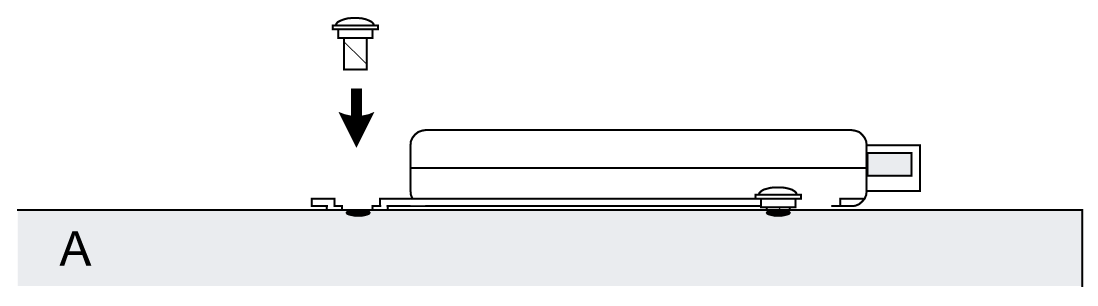

Secure the Isolation Unit in place with another attachment screw. Use a torque of 0.5 N•m (4.4 lb-in).

A Box Module

NOTE:
  • Attach the Isolation Unit to a stable surface. Do not leave the Isolation Unit or USB/RS-422/485 Conversion Adapter hanging by its cord.

  • Be careful with wire placement. Overlapping cords may cause noise.

  • When attaching the Isolation Unit or USB/RS-422/485 Conversion Adapter to the Box Module, be careful with the attachment position.

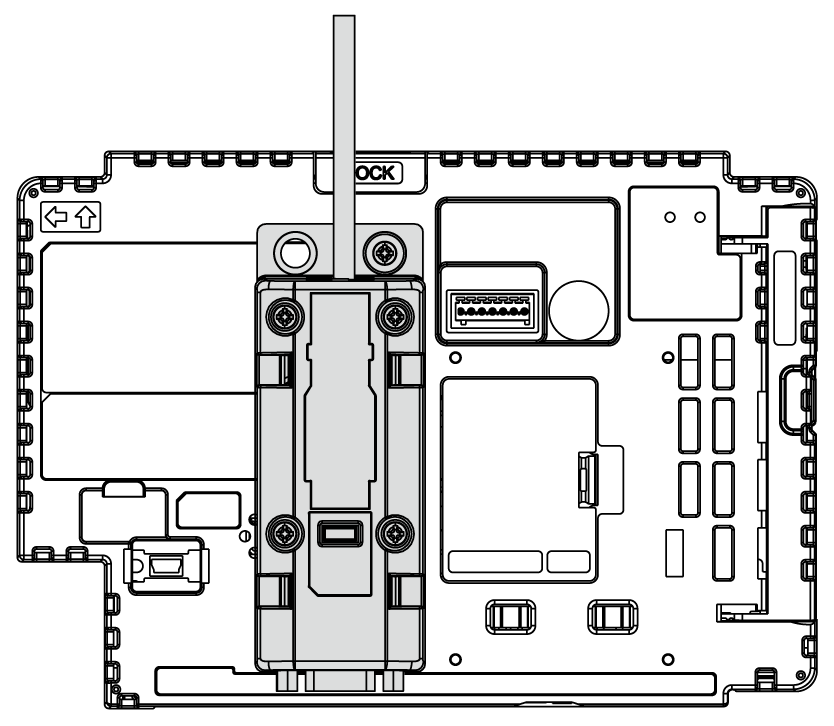

  • See the illustration below for recommended installation.
