SP5000X-MM01-EN_05

USB Clamp mini-B (1 port)

Introduction

When using a USB device, you can attach the Pro-face USB Clamp mini-B (model number: ZC9USCLMB1), a USB cable clamp to prevent disconnection from the USB port.

DANGER
EXPLOSION HAZARD
  • Verify the power, input, and output (I/O) wiring are in accordance with Class I, Division 2 wiring methods.
  • Substitution of any components may impair suitability for Class I, Division 2.
  • Confirm that the USB cable has been fixed with the USB clamp before using the USB interface.
  • Remove power before attaching or detaching any connectors to or from this product.
  • Use the USB (mini-B) interface for temporary connection only during maintenance and setup of the device.
  • Do not use the USB (mini-B) interface in hazardous locations.
Failure to follow these instructions will result in death or serious injury.

Attaching the USB Clamp

Step

Action

1

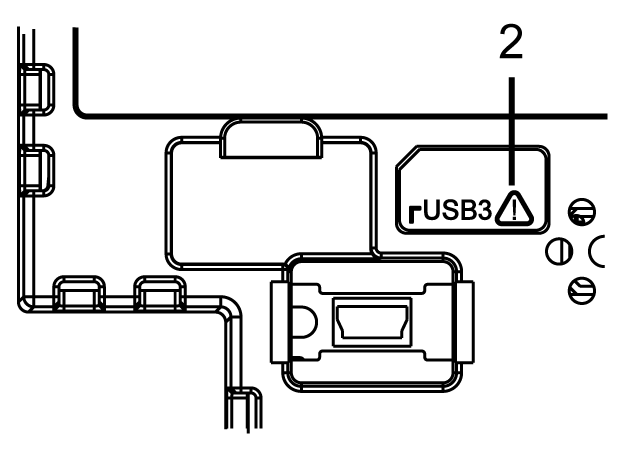

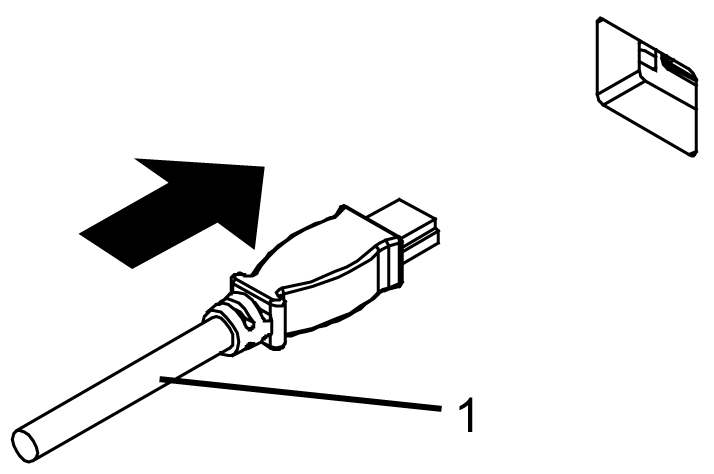

Insert the USB cable into the USB (mini-B) interface.

1 USB cable

2 This mark identifies safety messages about the USB Clamp mini-B (1 port)

2

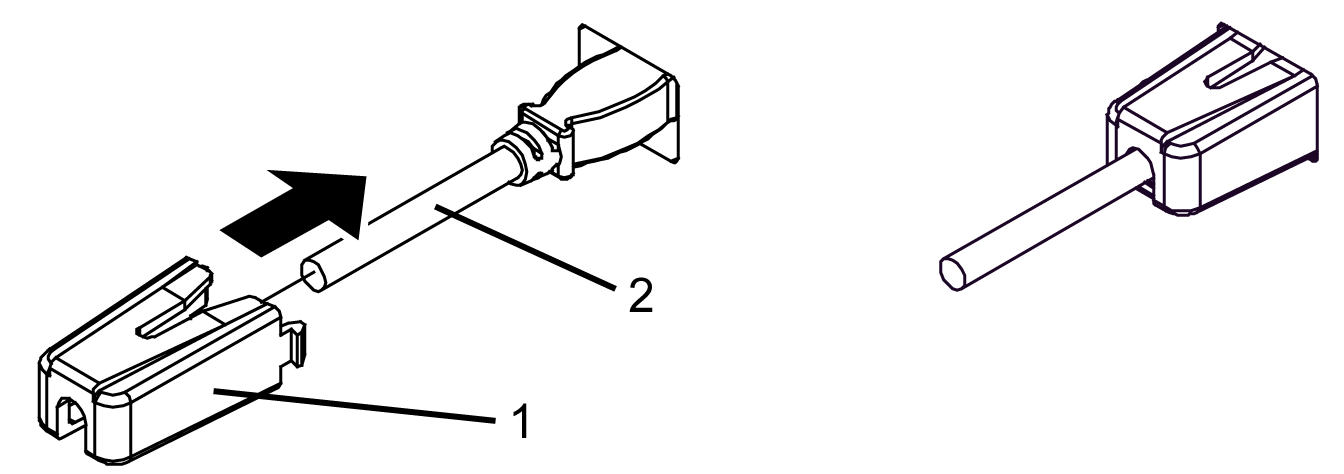

Attach the USB clamp to fix the USB cable in place. Insert the USB holder into the USB (mini-B) interface.

1 USB clamp

2 USB cable

Removing the USB Clamp

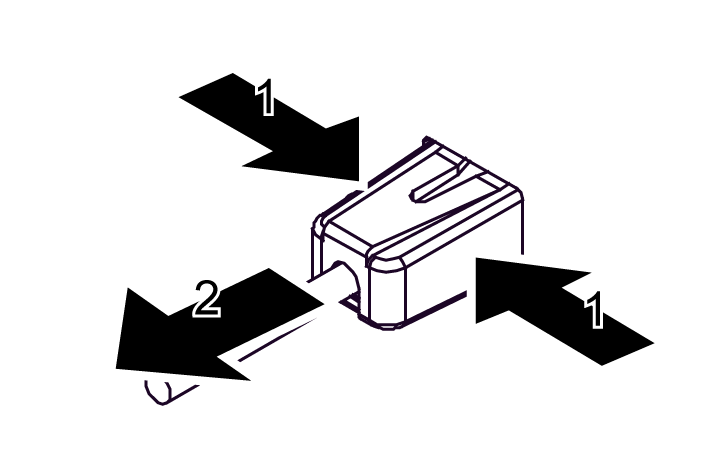

Remove the USB clamp by pressing the tabs from the sides.
