SP5000X-MM01-EN_05

SP-5B90

Side

SP-5B90

Front

Right

Bottom

Rear

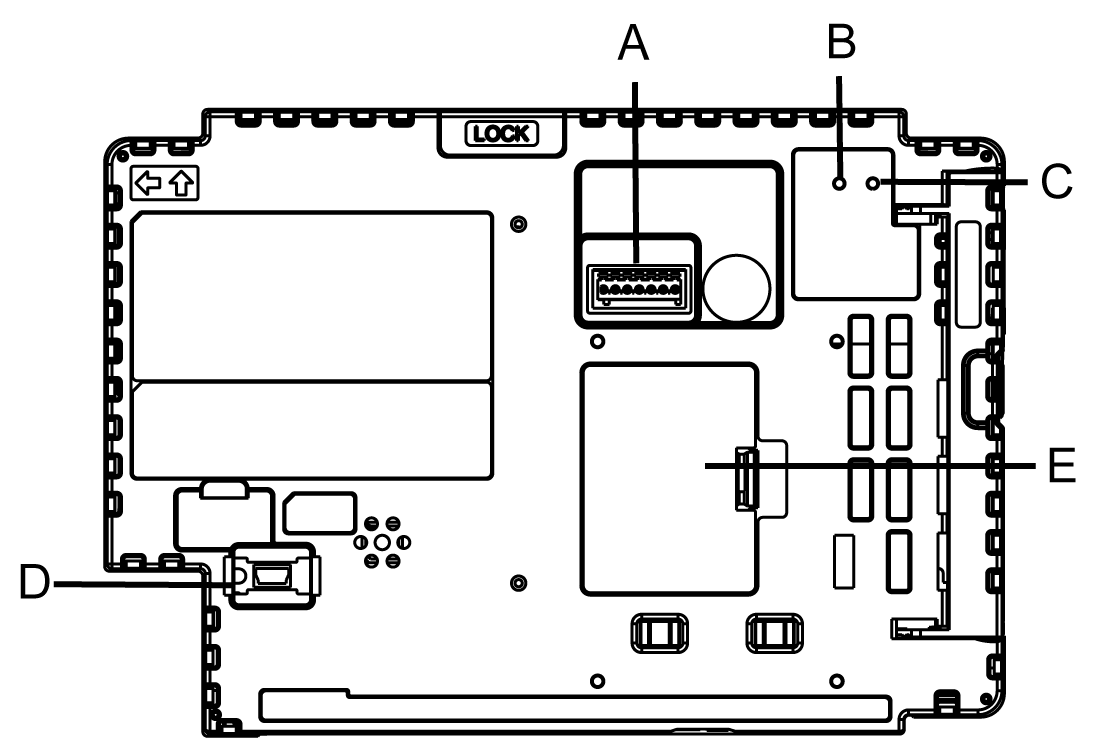

A: Auxiliary output/ Speaker output interface (AUX)

This interface is alarm output or buzzer output, and sound output.

B: Status LED*1

C: Card access LED*1

D: USB (mini-B) interface*2

E: Expansion unit interface cover (EXT)*3

The expansion unit can be embedded in the expansion unit interface cover opening, and battery for memory backup can be connected or replaced.

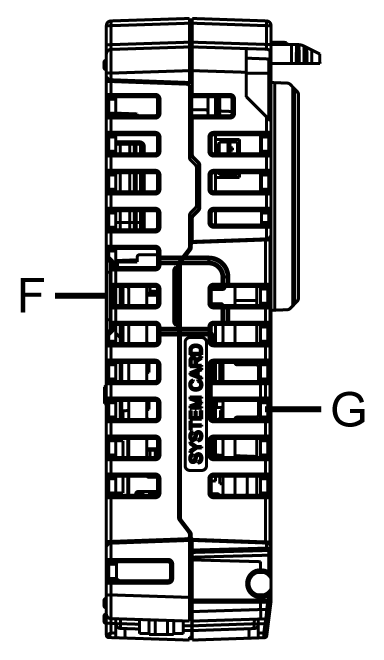

F: Storage card cover

G: System card cover

You cannot open this cover when the Box Module is in operation.

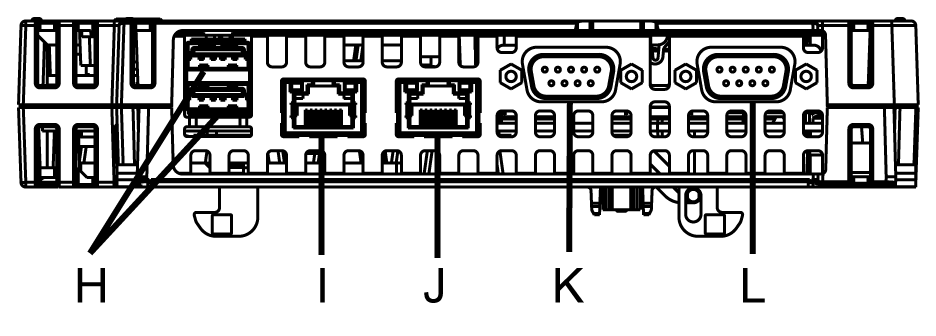

H: USB (Type A) interface*2

I: Ethernet interface (Ethernet1)*2

J: Ethernet interface (Ethernet2)*2

K: Serial interface (COM1)*2

L: Serial interface (COM2)*2

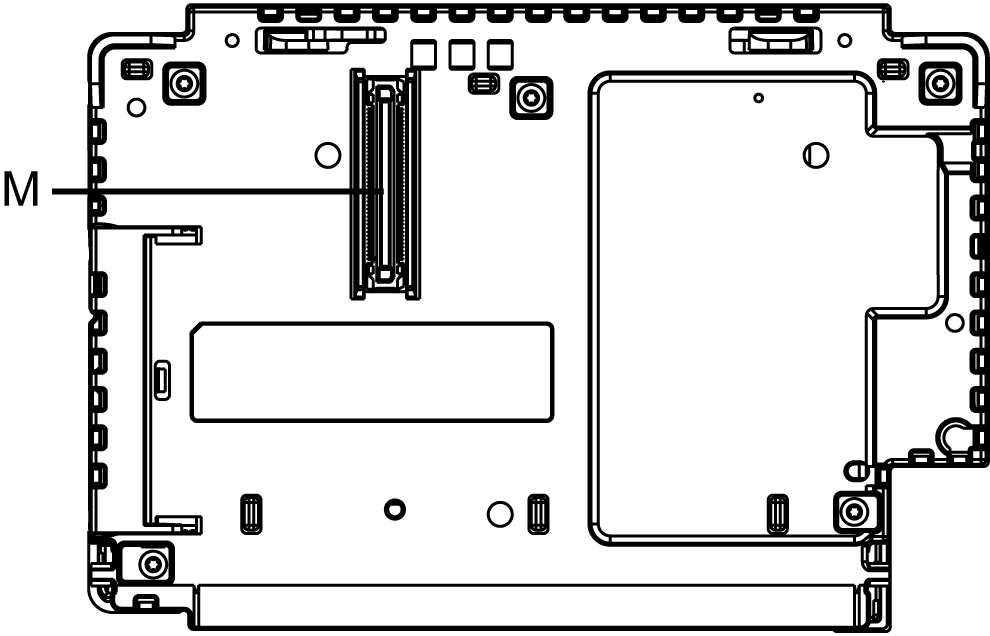

M: Display Module interface

*1 Refer to LED Indications

*2 Refer to Interface Specifications

*3 Refer to Replacing the Primary Battery
