SP5000X-MM01-EN_05

SP-5790WA

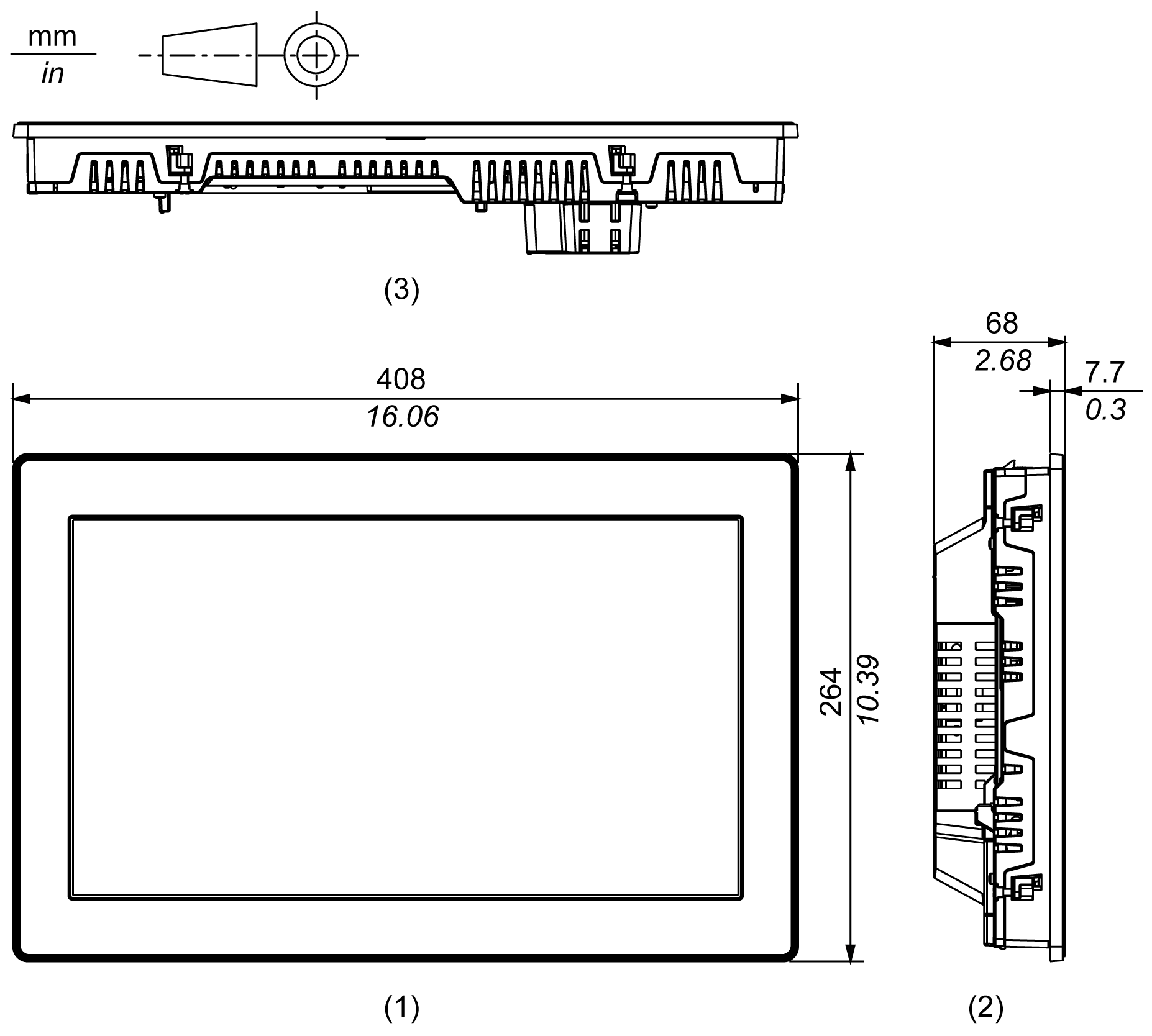

External Dimensions

1 Front

2 Left

3 Bottom

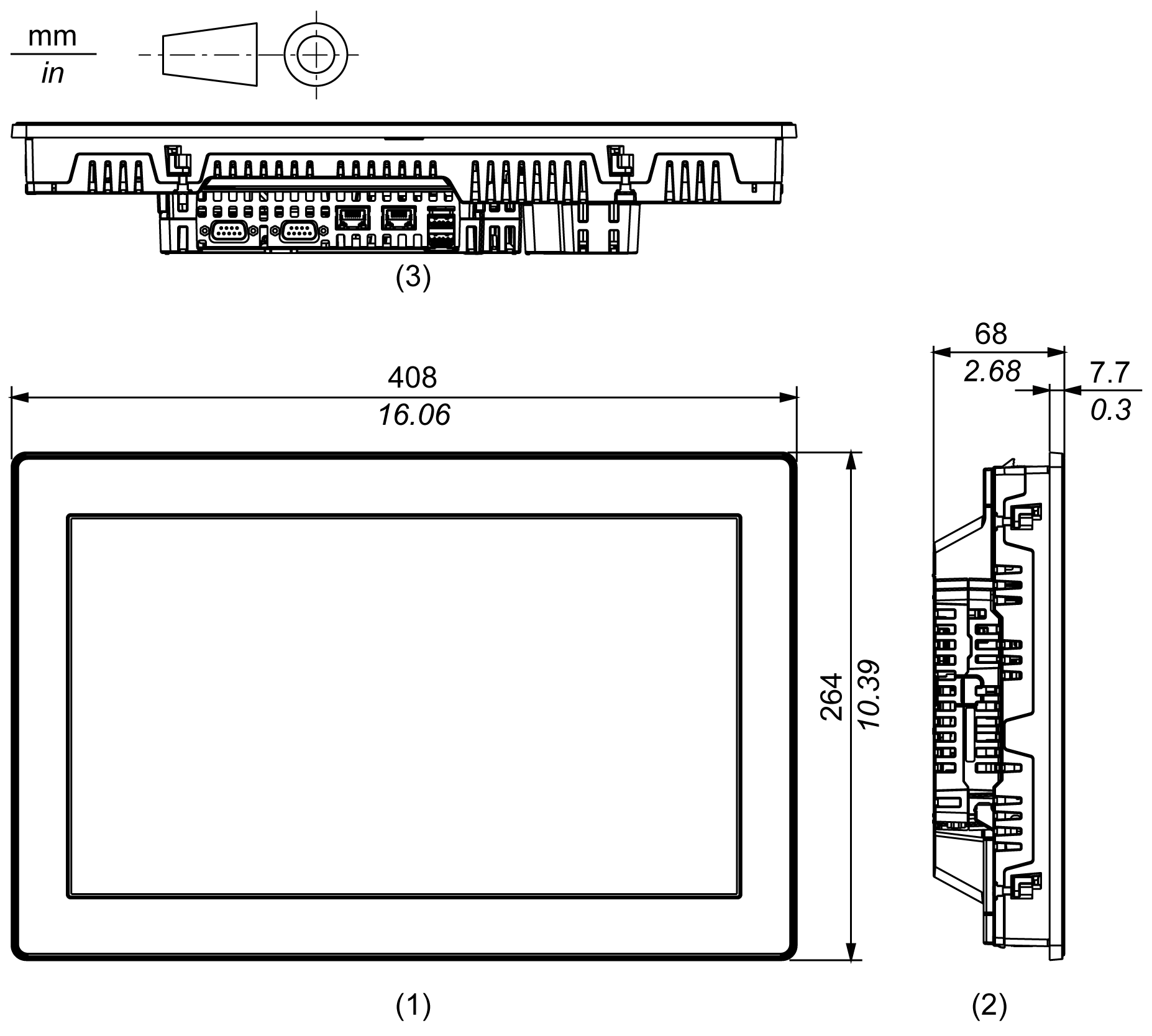

Dimensions with Box Module

1 Front

2 Left

3 Bottom

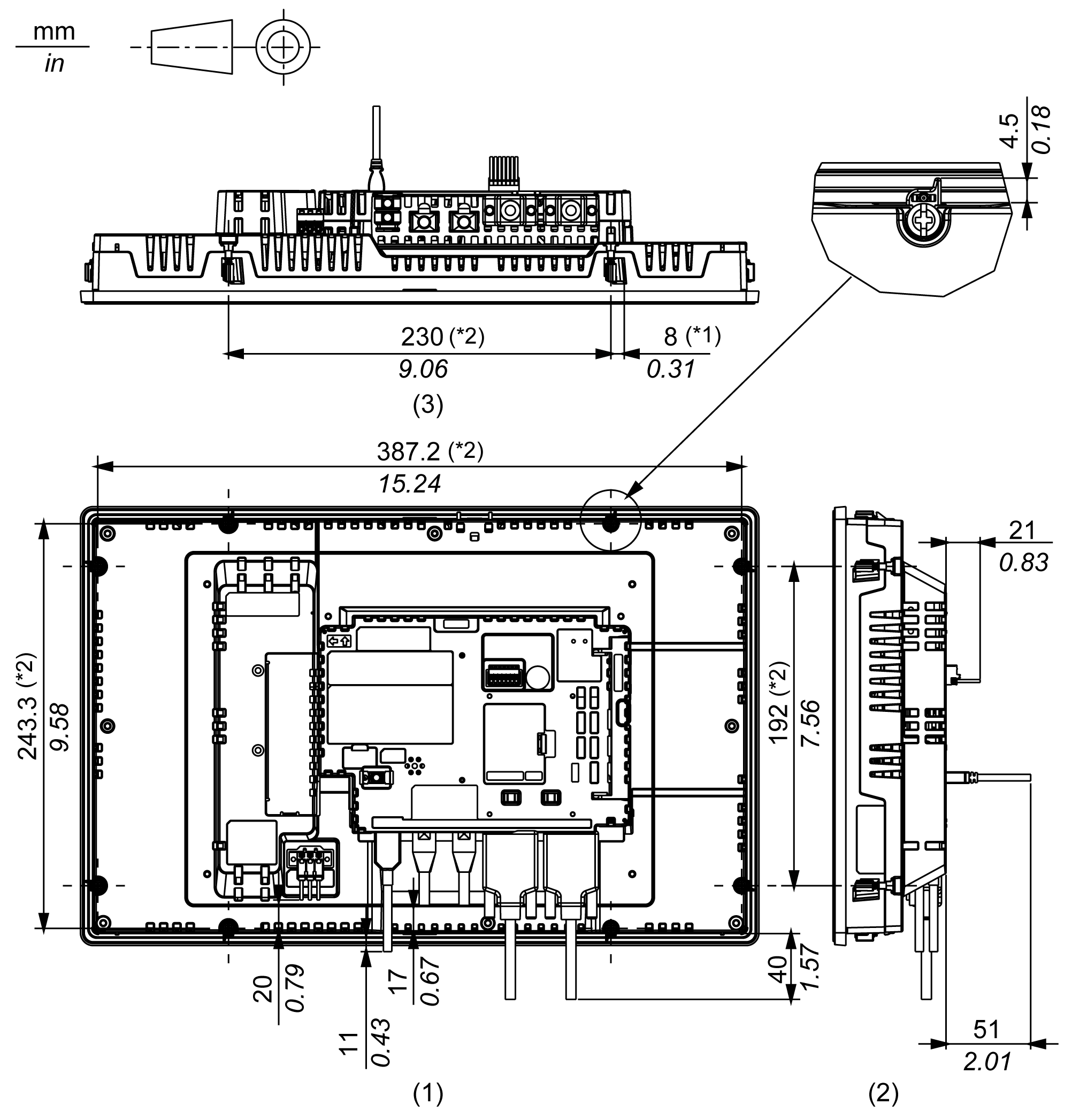

Dimensions with Cables

*1 Rotation area of the fastener

*2 Pitch of the enter of installation fastener screws

1 Rear

2 Right

3 Bottom

NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use. Therefore, these values are intended for reference only.
