27.1 Settings Menu

A select few models support the features introduced in this chapter. Check whether your model supports the features before changing any settings.

1.3 Supported Features

Displaying Video Camera Output

Overview 27.2 Displaying Video Camera Output

Steps 27.2.1 Procedure - Displaying Video Camera Output

Displays real-time video from a camera connected to the display unit.



Recording Video

Overview 27.3 Recording Video

Steps 27.3.1 Procedure - Recording Video/Saving a Movie File to the CF Card

Steps 27.3.2 Procedure - Recording Video/Saving a Movie File to the FTP Server

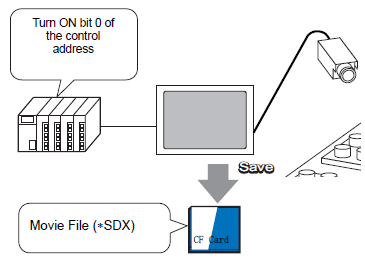

Saves the video signal to a CF Card, USB storage or FTP server as movie files.



Displaying Video Camera Output

Overview 27.4 Recording Video Before and After a Malfunction

Steps 27.4.1 Procedure - Recording Video Before and After a Malfunction

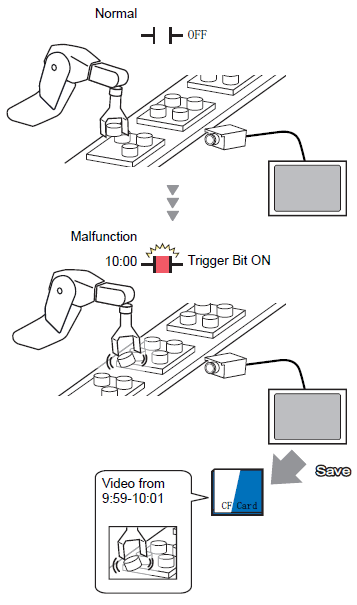

Automatically saves the video signal before and after a malfunction.



Playing Movies

Overview 27.5 Playing Movies

Steps 27.5.1 Procedure - Playing Movies/Using a Playlist

Steps 27.5.2 Procedure - Playing Movies/Selecting a Movie at Run time

Plays the movies in the specified order.



Plays the movie you want to see when you want to see it.



Displaying Multiple Video Camera Outputs Simultaneously

Overview 27.6 Displaying Multiple Video Camera Outputs Simultaneously

Steps 27.6.1 Procedure - Displaying Multiple Video Camera Outputs Simultaneously

Displays video from cameras connected to a VM unit in real time.



Displaying the Computer Screen

Overview 27.7 Displaying the Computer Screen

Steps 27.7.1 Procedure - Displaying the Computer Screen

The display unit can be used as a PC monitor.



Saving Video Output as Still Images

Overview 27.8 Saving Video Output as Still Images

Steps 27.8.1 Procedure - Saving Video Output as Still Images
