| a. |

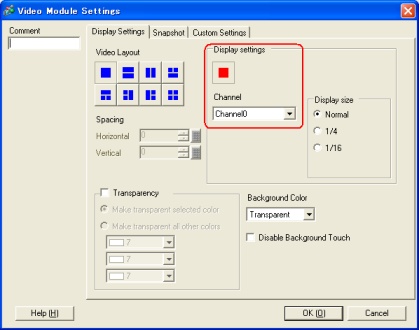

In case that Video Layout is set as [Always On] |
|
| * |
Please confirm that the VM unit window which has been set is set as [Video Number]. |
|
|
|
| b. |

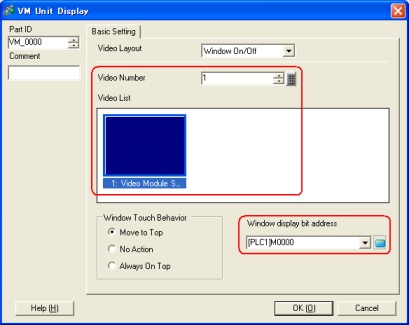

In case that Video Layout is set as [Window On/Off] |
|
| * |
Please confirm that the VM unit window which has been set is set as [Video Number]. |
| * |
Is the bit address that you have set on [Window Display Bit Address] ON? |
|
|
|
| c. |
In case that Video Layout is set as [Indirect] |
|
| * |

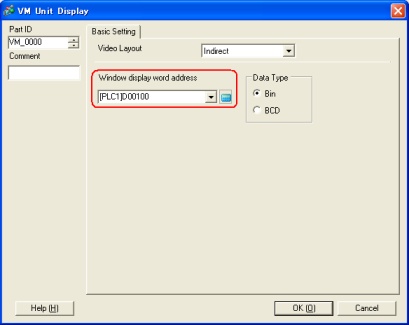

Is the word address that you have set on [Window Display Word Address] operated properly?
|
|
Window display word address is used to specify the displaying windows or to control Display/Delete by using sequential 4 words form the specified address.
Please input the number of the window to display on [Window Number] of the address which has been set, and confirm that Bit 0 of [Control] is ON.
The datum which are stored as below.
|
+0
|
Control
|
To display the designated window when Bit 0 is ON |
|
+1
|
Window Number
|
To set the windows to display |
|
+2
|
Display Location (X Posit.)
|
To set the Location of X Posit. to display |
|
+3
|
Display Location (Y Posit.)
|
To set the Location of Y Posit. to display |
|
|
|
|
