The following methods are used to start printing the displayed screen. The operation method differs depending on the communication method (direct access or memory link).
For more details on the communication method, refer to :
2.4.1 Minimizing the Load for Device/PLC Communication (Direct Access)
2.4.2 Communicating with Unsupported Device/PLC (Memory Link)
Direct Access Method
Operating by Screen Touch
35.4.2.1 Printing the Current Screen by Touch (Direct Access)
If you turn ON the display unit's internal device LS14 (control address) Bit 2 (print start bit) using a switch, the current screen will print.
Operating from a Device/PLC
35.4.2.2 Printing the Current Screen by a Device/PLC
If you turn ON control address Bit 2 in the system data area allocated to a device/PLC, the displayed screen will print.
Memory Link Method
Operating by Screen Touch
35.4.3.1 Printing the Current Screen by Touch (Memory Link)
If you turn ON the display unit's internal device (#MEMLINK) 0011 (control address) Bit 2 (print start bit) using a switch, the current screen will print.
Operating from a Host (PC)
35.4.3.2 Printing the Current Screen by a PC Host

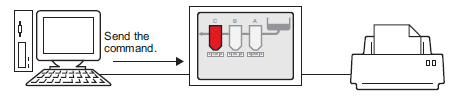

If you send the command to write '0004h' to '0011' (control address) from a host (PC), the current screen will print.
