| How to Register the Entry Node? |
|
To use "Pro-Server EX", you must first register the PC and GP connected on the network as entry nodes. You set the node name, communication information like IP addresses, and Device/PLC type as registration information.
| |
|
| 1. |

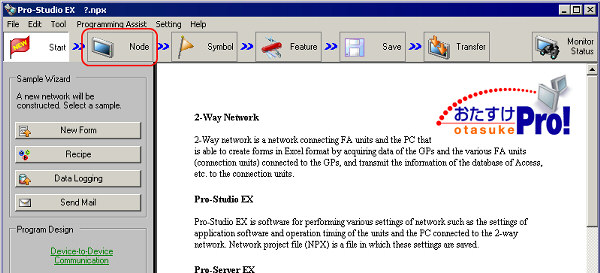

Click ［Node］ Icon on the status bar. |
|
 |
|
|
| 2. |

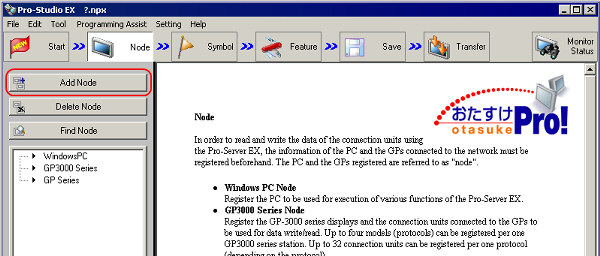

Click ［Add Node］. |
|
 |
|
|
| 3. |

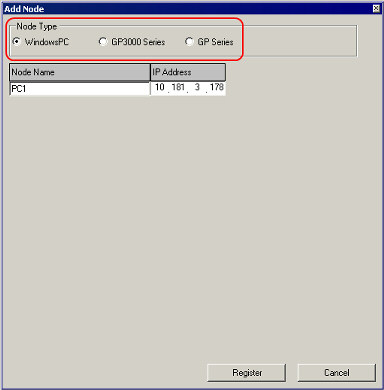

Choose "Node Type" of Entry Node. |
|
*Coose [GP3000 Series] when you are useing GP3000 Series.
Coose [GP Series] when you are useing GP2000 Series or GLC sERIES.
|
| 4. |

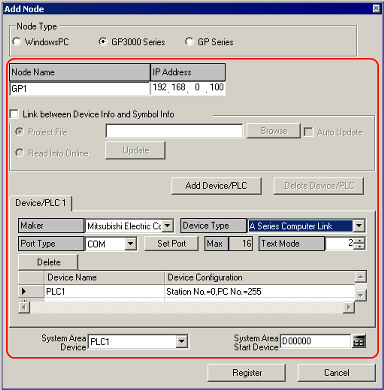

Enter [Node Name], [IP Address] , "Device/PLC" and some informations. |
|
| *1 |
When you choose [Windows PC] for "Node type", please enter [Node Name] and [IP Address] only.
|
| *2 |
Please refer about [Link to Device Data and Symbol Data] - [Projeck File], click here |
|
Please refer about [Link to Device Data and Symbol Data] - [Read Data via on-line], click here |
|
Please refer about [Text Mode], cliclk here |
|
|
|
