Installation of the SSD Unit

- The electric power may be supplied to the PL unit even when a screen blacks out (such as the standby mode). To prevent from a unit malfunction, be sure to check that the PL unit's power is disconnected before installing the unit.

- For more information on installation of the SSD Unit, see the installation manual.
PL3000 Series Hard Disk/SSD Unit Installation Guide

1. Unscrew the two screws of the HDD slot and remove the cover.

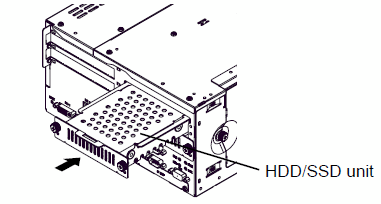

2. Insert the SSD Unit slowly along the guide rail while holding the cover. Make sure the SSD Unit is inserted all the way in the HDD slot.

3. Fix the SSD Unit with the screws. The torque should be 0.2 to 0.3 N m.
