 Is it possible to display the touch panel screen on another display?

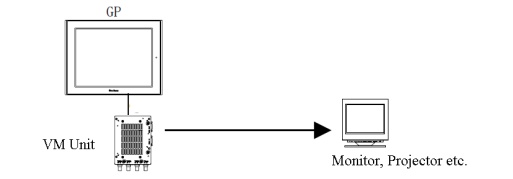

If the optional VM unit is installed on the GP unit, it is possible to display the GP screen on a monitor or a projector via the RGB output interface.




NOTE
-

For the information on models that can be connected to the VM unit, refer to the following page.
Which models of GP can be connected to the VM unit?

RGB Output Interface
Output Specification:
 640 x 480 pixels (GP-3500T/3550T)
800 x 600 pixels (GP-3600T/3650T)
No. of Interfaces:
 1
Connector:
 15-pin D-sub (Receptacle)
