Up to 4 screens from 5 source inputs including 4 external video camera (VIDEO) inputs and 1 PC video (DVI-I) input can be displayed simultaneously on a GP unit. Also, there is an interface (DVI-I) to output the GP image and it allows you to view the GP screen on an external monitor.
|
|
|
Video Cable |
|
|

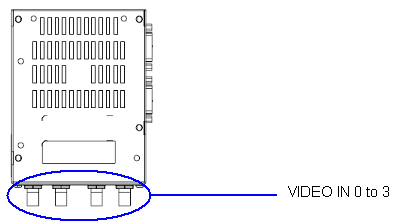

Connect a BNC connector to VIDEO IN 0 - 3.
|
|
|
|
|
|
| Input signal system |
NTSC/PAL |
| No. of interfaces |
4 |
| Connector |
75Ω BNC (Receptacle) |
| Recommended connector |
BNC-P-3DV-SA made by Hirose Electric Co. Ltd. |
| Recommended cable |
3C-2V Coaxial cable |
|
|
|
| NOTE |
|
-
|
NTSC and PAL systems cannot be applied at the same time. |
|
|
|
|
DVI Cable |
|
|
Connect a DVI-I 29-pin connector to DVI OUT or DVI IN.
|
|
|
|
|
|
| Input screem mode |
VGA / SVGA / XGA |
| Output screen mode |
640 x 480 pixels (AGP-3500T, AGP3550T)
800 x 600 pixels (AGP-3510T, AGP-3560T, AGP-36*0T)
1024 x 768 pixels (AGP-3750T) |
| No. of interfaces |
1/each |
| Connector |
DVI-I 29-pin (socket) |
| Recommended cable |
FP-DV01-50 (5m)
FP-DV01-100 (10m)
CA7-CBLCVRGB-01 (5m)
* All above are made by Digital Electronics Corp. |
|
|
|
| IMPORTANT |
| - |
FP-DV01-100 is an exclusive cable for Pro-face computer PS-2000B and PL-3000B (Revision code B or later). FP-DV01-50 can be used with general host computers as well. |
| - |
We recommend you to use a DVI cable within 5m. If a cable other than the specified Pro-face cable is used, the product performance cannot be guaranteed against possible noise or signal degradation. |
|
|
|
