 Is it possible to save images from a video camera?

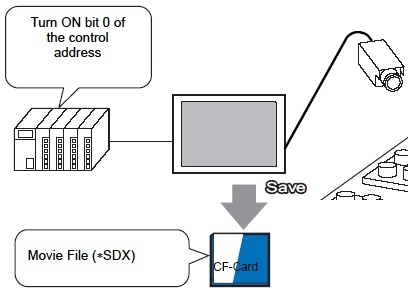

With the GP unit equipped with a video input interface, you can save images from a video camera as a movie file (a file with images and sounds). When Bit 0 of the specified control address is ON, the image will be recorded on a CF card (or an FTP Server). The file type will be SDX, a proprietary movie file format.
→ CF Card to use
→ Data size that can be saved
→ How to save a movie file



NOTE
* For the information on the GP models equipped with video input interfaces, go to the following page.
Which models of GP can display images from a video camera and how do I set up?
* Using the optional software [Movie Converter], .SDX files can be converted into file types that can be played with your PC.
→ Movie Converter
