 Adjusting the brightness/contrast

You can adjust the brightness and contrast of the GP.

Setting in offline mode
Set whether to display a control bar that is used to adjust the brightness and contrast of the GP.

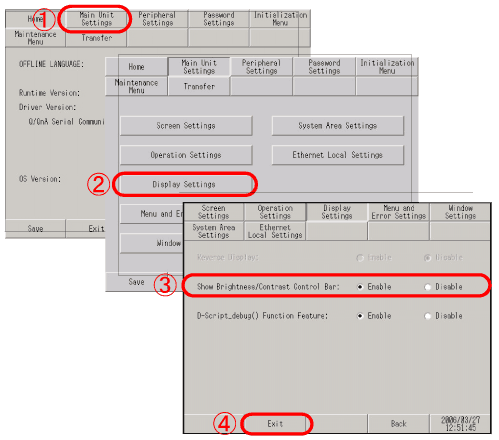

1. Enter offline mode and touch [Main Unit Settings] in the item changeover buttons.

2. When the [Main Unit Settings] screen opens, touch [Display Settings].

3. When the [Display Settings] screen opens, select [Enable] for [Show Brightness/ Contrast Control Bar].

4. Touch [Exit] to exit offline mode.


Show Brightness/Contrast Control Bar
When set to [Enable] for [Show Brightness/Contrast Control Bar]- [Display Settings].
Display the Brightness/Contrast Control Bar

Memo
  • This mode cannot be entered while waiting for GP to start up. Enter this mode after the RUN screen is displayed.
  • This operation can be made even in the middle of RUN mode (during communication with the connected device)

Touch either the upper right and upper left corners, or the upper left and upper right corners (within 40 pixels of every direction) of the panel in this order within 0.5 second.

Touching [+] and [-] of Brightness/Contrast Control Bar and the strength is adjusted.Touch [x] to end the adjustment.TFT color LCD model (AGP-3500T can set only Brightness. TFT color LCD model (AGP-3500T etc.) setting only Brightness. To end Brightness/Contrast Control mode Touch the [x] of Brightness/Contrast Control Bar
