| I can not input the address. |
|
Error Description
|
*
|
The address can not be inputted. |
Confirmation
| 1. |

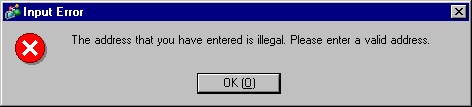

Is the error message [The address that you have entered is illegal. Please enter a valid address.] displayed? |
|
|
|
|
Displaying the error message →
|
Go to Cause 1 |
|
| 2. |
Is ENT key working when inputting from the keypad?
|
|
|
|
|
ENT key is not working →
|
Go to Cause 2 |
|
Cause
|
| 1. |
The address out of the device range of PLC may be inputted. Or the letters except for single-byte letters may be inputted in the address. |
|
Go to Solution 1
|
| 2. |
The address out of the device range of PLC may be inputted. |
|
Go to Solution 2
|
|
Solution
|
| 1. |
Input the address within the device range of PLC (*1). Please make sure to input the address in single-byte letters. If you input in other letters, you can not input addresses. |
| 2. |
Please confirm that the address within the device range of PLC is inputted. |
|
| MEMO |
|
*1
|
Please confirm the available device of each PLC referring to Device/PLC Connection Manual. |
|
|
|
|
|
|
