The display position of RGB input images or JPG images are misaligned.

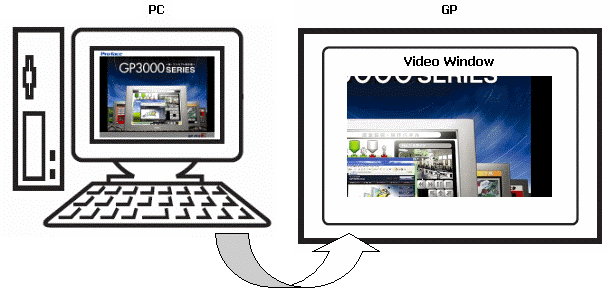

If you change the display position of video images or picture images in the video settings, part of the image will be cut off and missing from the video window. In this case, follow the following procedures and adjust the display position.


Setup Procedure

1.

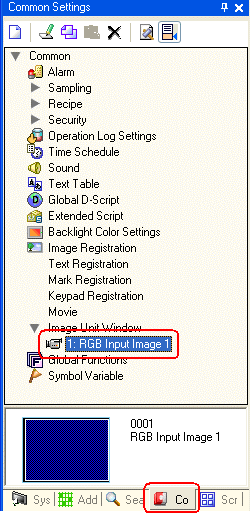

In the [Common Settings] window of the Work Space, click [Image Unit Window] and select a video window.

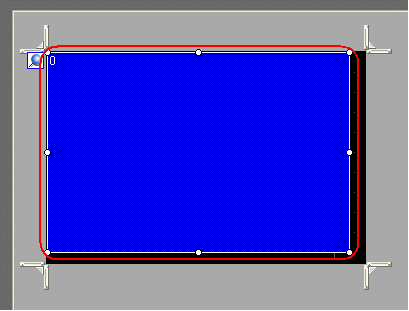

2. The video window will open. Double-click on the video display area.

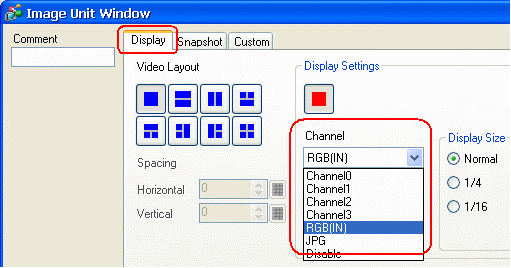

3. The [Image Unit Window] dialog box will open. On the [Display] tab, if the [Channel] was set to "RGB(IN)" or "JPG", change it to "Channel 0".

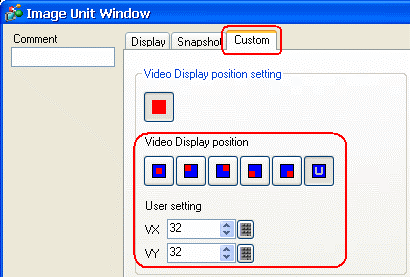

4. Next, on the [Custom] tab, adjust the display position of RGB input images or JPG images.



NOTE
- The default values of [User setting] are VX = 0, VY = 0.

5. Go back to the [Display] tab, and set the [Channel] to "RGB(IN)" or "JPG".



NOTE

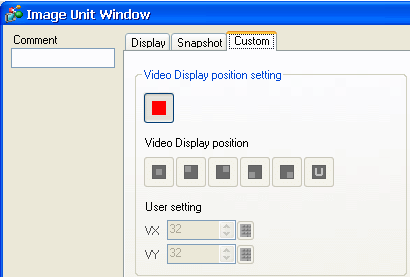

- When the [Channel] is set to "RGB(IN)" or "JPG", setup selections on the [Custom] tab are grayed and you can't change the settings.
