Compatibility
User Label

Label names set in GP-PRO/PB3 C-Package are converted to "Label-**" (** ; the number assigned in order of the logic). The operations after conversion differ depending on with/without comments.

→ Click here for information on how to insert a label.

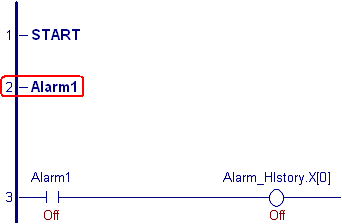

The case there is no rung comment
Only a label is inserted on the logic program.

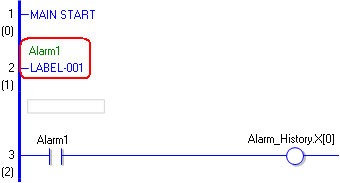

The label is replaced to the label name "Label-**" and the former label name will move to the rung comment.

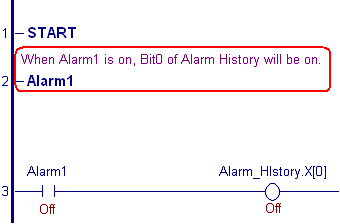

The case there is a rung comment
A rung comment is inserted with the label on the logic program.

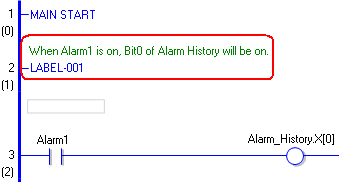

The former label name is replaced with the label name "Label-**". Also it is voided and the rung comment remains.
