Ladder Monitor Screen

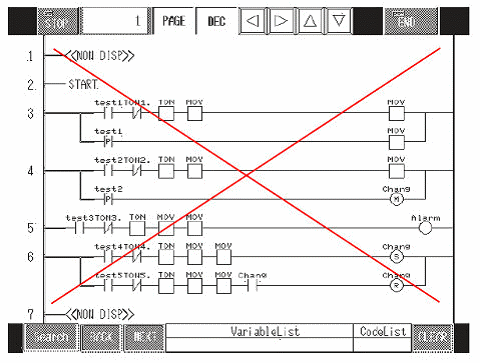

In GP-PRO/PB3 C-Package, it is necessary to register screens for the ladder program monitoring. On the other hand, a new function called Logic Monitor has been added in GP-Pro EX, with which you don't need to register screens. Screens registered as GLC Ladder Monitor are not converted and are deleted.


If you specify a screen number in the settings of screen creation parts or the logic program directly, the screen will not switch to the ladder monitor.
Specify "
#L_LogicMonitor" to a system variable so that the screen can switch to the Logic Monitor screen.

Click here for information on how to start Logic Monitor
