Differences of Controller Auto Start Settings

GP-PRO/PB3 C-Package's [Disable controller auto start] setting is converted to GP-Pro EX's [Run at Start Up]. Besides, the [Default] setting of [CONTROLLER STATE] on the GP's Offline mode is removed and it becomes a very simple setting to select the status either RUN or STOP at startup.

Comparison of Setting Items
If you didn't check [Disable controller auto start] on the [Tuning] tab in the GP-PRO/PB3 C-Package's [Controller Setup] dialog box...

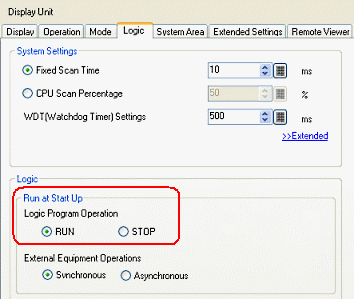

The [Run at Start Up] setting on the [Logic] tab in GP-Pro EX's [Display Unit] setting will be set to [RUN].

Inversely, if [Disable controller auto start] was checked, [STOP] will be checked.

Back to page top Return to the previous page
