GP-PRO/PB3's J Tag and R Tag are converted to GP-Pro EX’s [Picture Display] part –[Move Display] feature.
Basically, the operation of GP-Pro EX’s [Picture Display] part is the same as that of GP-PRO/PB3's J Tag and R Tag, however, they may differ depending on the contents set in GP-PRO/PB3.
| Cases that J Tag and R Tag are not converted |
| The case either one J Tag or R Tag is placed on the screen |
|
| The case multiple J Tags with the same Rail number are placed on the screen |
|
| Pattern1: The case either one J Tag or R Tag is placed on the screen |
Only when a pair of J Tag and R Tag whose Rail numbers are the same are on a base screen, they will be converted.
If only one type of tag either J Tag or R Tag is on a base screen, it will not be converted.
| Example case 1 |
If there is only one J Tag on a base screen, it will not be converted.
The same applies to R Tag.
|
GP-PRO/PB3 |
 |
|
|
| GP-Pro EX |
 |
|
| Example case 2 |
|
If a J Tag with the Rail number 1 and an R Tag with the Rail number 0, of its display positions specified, are on a base screen, they will not be converted.
|
GP-PRO/PB3 |
 |
|
|
| GP-Pro EX |
 |
|
| Pattern 2: The case multiple J Tags with the same Rail number are placed on the screen |
If there are two or more J Tags with the same Rail number, the tag that has the smallest JIS code will be converted. Other J Tags will not be converted.
| Example case |
|
GP-PRO/PB3 |
1. Place 2 J Tags with the Rail number 1 on a base screen. On the screen, the following tags have been placed.
|
 |
| Tag |
Tag name |
Address |
Rail No. |
Convertible |
| J Tag |
J_0000 |
D0 |
1 |
Yes |
| J_0001 |
D100 |
1 |
No |
| R Tag |
R_0000 |
- |
1 |
Yes |
|
|
|
|
GP-Pro EX |
2. If you have set as above, “J_0000” and “R_0000” will be converted into one part. |
 |

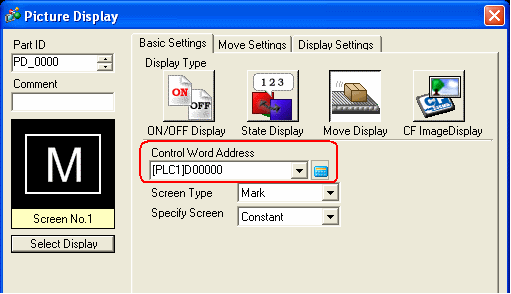

The following is the settings of the [Picture Display] after conversion to GP-Pro EX.
|
|
