Compatibility of Standard Font

After converting a project file from GP-PRO/PB3 to GP-Pro EX, the Standard Font in the data may look different. Because, in GP-Pro EX, the Standard Font displayed depends on the size of the font.

* How to make the Standard Font similar to GP-PRO/PB3's font


In the [System Settings] window of the Work Space, select [Display Unit].


In the [Display Unit] screen, open the [Extended Settings] tab and click the [Compatibility] button at the bottom.

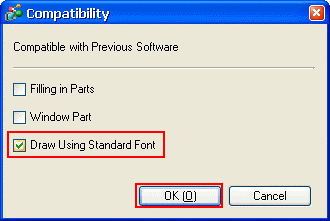

The [Compatibility] dialog box opens. Check [Draw Using Standard Font] and click [OK] to complete the settings.
