Compatibility of connectable PLC/Devices
Important notes for replacement common to each driver

GP-Pro EX drivers don't support some functions supported function of GP-PRO/PB3 drivers. So please confirm the following notes before you replace to GP3000 series.

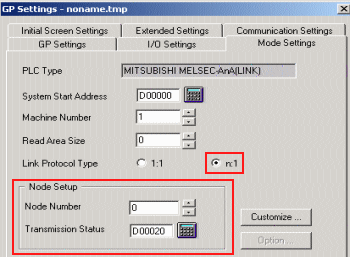

1. Some connection drivers do not support multi-link connection. When converting the project file used with n:1 setting as below, by using models that do not support multi-link, it is automatically converted to 1:1 connection.
- GP-PRO/PB3 for Window


MEMO
For the detailed explanation of multi-link connection, or supported models, please refer to the "Ether Multi-link", and "Serial Multi-link" in the following page.
  http://www.pro-face.com/otasuke/qa/3000/faq.cgi?mode=3000&cat=c

2. [Reset GP on Data write error] setting can't be set at GP3000 series.
When you connect GP3000 to PLC, if GP fails to write data to PLC, GP3000 tries to write the data twice. After GP tries it twice and still GP can't succeed, GP stops to write.

3. Device codes of GP-Pro EX is different from device codes of GP-PRO/PB3. So if you use the function of [indirect] and [Device type & Address] at E tag or K tag and your set the value of each device code of GP-PRO/PB3 to a word address, you need to change it to the device code of GP-Pro EX.
·GP-PRO/PB3 for Windows


4. The timer setting of TCP/IP protocol can't be set at GP-Pro EX. Each driver communicate to PLC with the fixed timer value.
