| How to check the type of Device/PLC on the GP unit |
|
How to enter the OFFLINE mode
| After power-on |
|

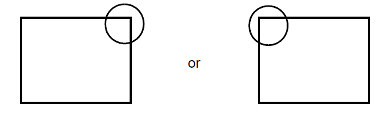

Touch the upper right corner or the upper left corner (within 40 pixels of the edge) of the panel for at least 3 seconds soon after the startup screen is displayed. |
 |
|
|
| During operation |
|

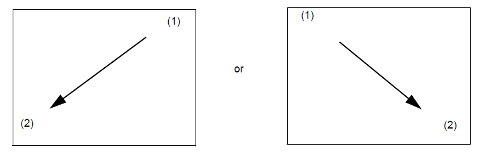

Touch either the upper right and the lower left corners, or the upper left and the lower right corners (within 40 pixels of the edges) of the panel in this order within 0.5 second. |
 |
|
|
|
The system menu is displayed, then touch [Offline]. |
 |
How to check the type of Device/PLC
|

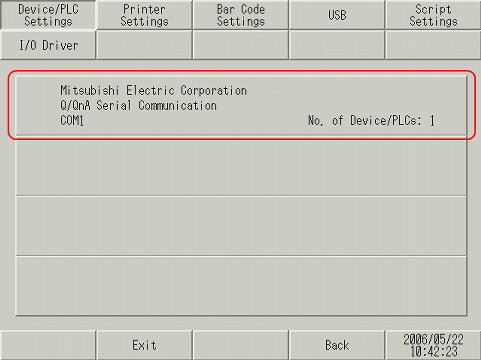

From the OFFLINE mode's [Peripheral Settings] menu, select [Device/PLC Settings]. Check if the device/PLC in use is the same as the one shown here. |
|
|
|
| NOTE |
|
You cannot change the type of the device/PLC on the GP unit. To change the type of the device/PLC, change the settings in GP-Pro EX and then transfer the project data to the GP unit.
|
|
|
|
|
