| Communication Settings on the GP unit |
|
How to enter the OFFLINE mode
| After power-on |
|
Touch the upper right corner or the upper left corner (within 40 pixels of the edge) of the panel for at least 3 seconds soon after the startup screen is displayed. |
 |
|
|
| During operation |
|
Touch either the upper right and the lower left corners, or the upper left and the lower right corners (within 40 pixels of the edges) of the panel in this order within 0.5 second. |
 |
|
|
|
The system menu is displayed, then touch [Offline]. |
 |
Communication Settings
|

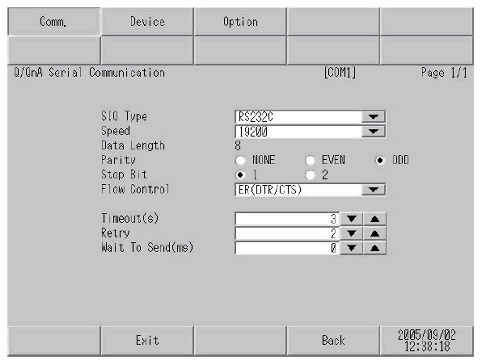

From the OFFLINE mode's [Peripheral Settings] menu, select [Device/PLC Settings]. Select the device/PLC to set up from the list, then touch [Comm.] button. |
|
|
|
Match the settings to those of the device/PLC.
|
|
|
