| Barcode Reader Connection |
|

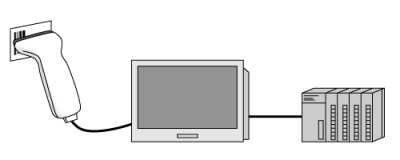

| A barcode reader can be connected to either the USB port or the COM1 port on the GP3000 series. |
|
|
|
| NOTE |
| * |
Each of the COM1 port and the USB port allows one barcode reader to be connected to, however, if you connect two barcode readers at the same time and store the code data in the Data Display part or the internal device from both barcode readers, the system may not work properly. One barcode reader should be set up to store data to the Data Display part, and the other should be set up to store data to the internal device. |
|
|
Connecting a barcode reader to the USB port
|
* |

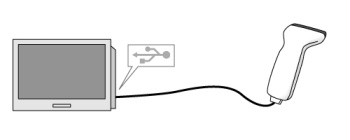

Connection Structure |
|
Connect a barcode reader to the USB port on the GP3000 series. |
|
|
* |
Tested barcode readers |
|
Manufacturer |
Model |
Type |
Supported models |
Supported version |
GP3000 Series
(except
GP3200 Series) |
GP3200 Series |
TOHKEN CO., LTD. |
THLS-7000ESD-USB |
Barcode reader |
|
|
|
THLS-6920USB |
Barcode reader |
|
|
|
THLS-6800USB |
Barcode reader |
|
|
|
THLS-6910 |
Barcode reader |
|
- |
|
THLS-1900 |
Barcode reader |
|
- |
|
HAND HELD PRODUCTS, INC. |
IT-5800 |
Barcode reader |
|
- |
|
DENSO CORPORATION |
GT10B-SU |
Barcode reader |
|
- |
|
GT10B-SB |
Barcode reader |
|
- |
|
KEYENCE CORPORATION |
BL-210UB |
Barcode reader |
|
- |
|
BL-N70UB |
Barcode reader |
|
|
|
BL-N60UB |
Barcode reader |
|
- |
|
Symbol Technologies, Inc. |
LS3408FZ |
Barcode reader |
|
- |
|
LS9208 |
Barcode reader |
|
- |
|
IDEC DATALOGIC
CO., LTD. |
HERON-D130 |
Barcode reader |
|
- |
|
| Opto Electronics Co., Ltd. |
OPL-6845-USB *1 |
Barcode reader |
|
- |
|
|
|
|
| NOTE |
| *1 |
The OPL-6845-USB software version FM22J03 or higher is required. (The system may not operate properly if the firmware version of the barcode reader is lower than the above mentioned.) Please refer to the instruction manual attached to the barcode reader. |
| *2 |
The system may not operate properly with GP-Pro EX V.1.01.004 or lower. |
| *3 |
The system may not operate properly with GP-Pro EX V.1.01.001 or lower. |
|
|
|
Connecting a barcode reader to the COM1 port
|
* |

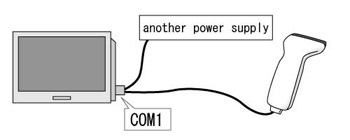

Connection Structure |
|
Connect a barcode reader to the COM1 port on the GP3000 series. |
|
|
|
| IMPORTANT |
|
*
|
Use the RS-232C cable and the power supply provided with the barcode reader. (The 5V power supply of COM1 on the AGP is not available.) |
|
|
* |
Tested barcode readers |
|
|
Manufacturer
|
Model
|
Type
|
Supported models
|
Supported version
|
|
GP3000 Series
(except
GP3200 Series)
|
GP3200 Series
|
TOHKEN CO., LTD. |
TLMS-3500RV
(RS-232C) |
Barcode reader |
|
|
|
THLS-6800
(RS-232C) |
Barcode reader |
|
- |
|
THLR-3000N |
2D code reader |
|
- |
|
Nichiei Intec Co., Ltd. |
FFTA10A |
Barcode reader |
|
- |
|
AIMEX Corporation |
BW-880RS-B1 |
Barcode reader |
|
- |
|
DENSO CORPORATION |
QS20H-I-R |
2D code reader |
|
- |
|
|
|
|
| NOTE |
| *4 |
When you set "DENSO Mode", some of the codes may not be read. |
|
|
|
|
