The number of symbol variables to register is as follows: |
| |
|
| |
■Symbols |
| |
10000 |
| |
|
| |
■Variables |
| |
GP-3200 Series and ST3000 Series: 1000 |
| |
All other touch-screen operator interface: 6000 |
| |
|
| |
| IMPORTANT |
For the number of symbol variables avobe, GP-Pro EX Ver. 2.7 or later is required.
In case of using GP-Pro EX prior to Ver. 2.7, the number of symbol variables to register is 9000 (Symbols: 3000, Variables: 6000).
GP-Pro EX Upgrade Service |
|
|
|
| *1 |

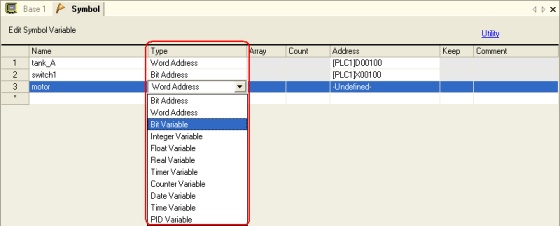

Symbol : Setting Bit Address or Word Address on Type to register the device address when registering symbol variables
|
| *2 |
Variable : Setting ***Variables on Type to register the device address when registering symbol variables
|
|
|
|
|
| NOTE |
|
・ |
Confirming the number of variables which are currently registered |
|
| 1. |

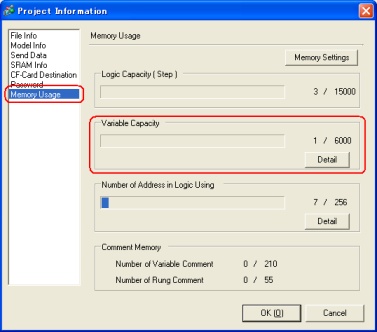

On the [Project] menu, please select [Property], and click [Project Information]. |
|
|
| 2. |
After selecting [Memory usage], you can confirm the number of the variables which are currently registered on [Variable Capacity]. |
|
|
|
|
|
|
|
