IPC and PC/AT compatible machines that support WinGP are as follows;
|
|
| NOTE |
|
*
|
To check the specifications for each supporting model, see the IPC series users manual. |
|
*
|
WinGP will start only on the models listed below. |
|
*
|

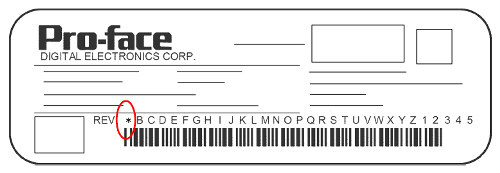

The revision number of the unit is shown in the label affixed to the unit. In the example shown below, an asterisk "*" is displayed in the position where "A" should be, therefore, the revision is "Rev.A" |
|
|
|
|
| PS Series |
|
|
Supporting models
|
|
PS3451A-T41-24V
|
|
PS3450A-T41-24V
|
|
PS3450A-T41
|
|
PS3651A-T41
|
|
|
PS3650A-T41
|
|
PS3700A-T41-ASU-P41 (Rev.H or later)
|
|
PS3710A-T41
|
|
PS3710A-T41-PA1
|
|
PS3711A-T41-24V
|
|
PS2000B-41 (Pentium III 1GHz)
(Rev.M* or later)
|
|
|
Supporting operating system
|
|
Windows 2000 (Service Pack 3 or later)
|
|
|
Windows XP
|
|
Windows XP Embedded
|
|
|
| PL Series |
|
|
Supporting models
|
|
APL3000-BD
|
|
APL3000-BA
|
|
APL3600-TA
|
|
APL3600-TD
|
|
|
APL3600-KA
|
|
APL3600-KD
|
|
APL3700-TA
|
|
APL3700-TD
|
|
APL3700-KA
|
|
APL3700-KD
|
|
APL3900-TA
|
|
APL3900-TD
|
|
|
Supporting operating system
|
|
Windows 2000
|
|
|
Windows XP
|
|
Windows XP Embedded
|
|
|
| PC/AT |
|
|
Required specifications
|
Remarks
|
|
CPU
|
1GHz or faster
|
|
|
|
Operating system
|
Windows® 2000 (Service Pack 3 or later)
Windows® XP (Home Edition / Professional)
Windows Vista® (Ultimate / Home Premium / Home Basic / Business / Enterprise) 32bit
|
|
|
Resolution
|
SVGA 800x600 or above
|
SXGA is recommended.
|
|
Memory
|
512MB or more
|
1 GB or more is recommended.
|
|
Hard disk space
|
200MB or more
|
This capacity is required for installation.
|
|
|
|
|
| NOTE |
| * |
When WinGP operates in a non-Japanese operating system environment, the WinGP window menu bar, the right-click menu, the copy tool, and popup messages are all displayed in English. The language displayed on the GP unit can be selected in the GP's offline mode's [Main Unit Settings] → [Menu and Error Settings] → [System Language Settings].
|
|
|
|
|
