| How can I enter consecutive device addresses at one time? |
|
|
| When you enter values into device addresses with Device View, you can input multiple values at one time. In the [Value] field, input multiple values separated with either spaces or commas. Select [Write] to write the values to consecutive addresses from the defined address. |
| |

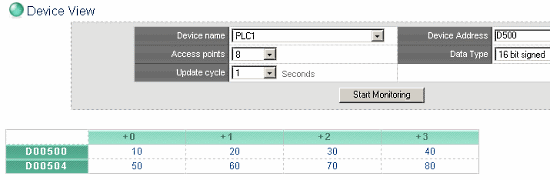

| To input consecutive values into device addresses from D500 to D507, for example, separate each value with a space as follows. |
| |
|
|
|
| |
| NOTE |
| The number of consecutive addresses you can write to depends on the Data Type as follows. |
| |
Data Type |
Input Points |
Bit |
128 points |
16-Bit Signed |
36 points |
16-Bit Unsigned |
42 points |
16-Bit Hexadecimal |
51 points |
32-Bit Signed |
21 points |
32-Bit Unsigned |
23 points |
32-Bit Hexadecimal |
28 points |
Single Precision Floating Point |
28 points |
Double Precision Floating Point |
14 points |
Text |
256 bytes |
|
|
|
|
|
