| Can I re-write the logic program while it is running? |
|
|

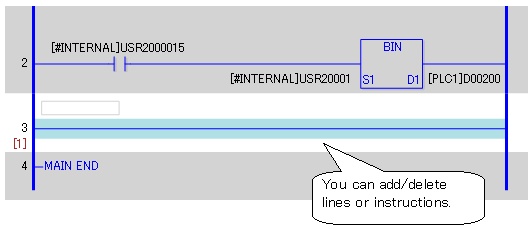

| Yes, you can. By using the function called Online Edit, you can edit the logic program while running Online Monitor. With Online Edit, you can do the followings.
|
| |
- Insert / Delete Rungs
- Insert / Delete Branching
- Insert / Delete Instructions
- Edit Operands
- Insert / Delete Labels |
|
|
|
|
|
|
| |
| IMPORTANT |
| - |
Online Edit edits logic programs in the GP from a PC, so edited content is not reflected
in a project file (*.prx) in the PC. After online editing, the following dialog box appears when the Online Monitor is closed.
If you want to reflect the edited contents to the project file in the PC, click [Yes (Y)]. Otherwise, click [No (N)]. |
| |
 |
| |
|
| - |
With Online Edit, you cannot create a new variable. Allocate existing variables when adding instructions. |
| - |
After editing, an error check is performed in the logic program. If any errors are found, the transfer will not occur. |
|
|
|
|
