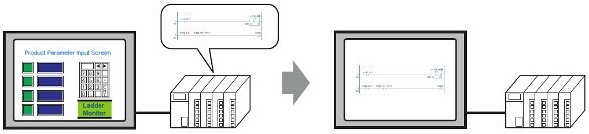

Ladder Monitor is a function to read ladder programs from a PLC (Mitsubishi Electric Corporation PLC Q Series) and monitor it on a display screen. It monitors ladder programs online without stopping other functions.
|
|
|
|
The ladder monitor feature allows you to do the following;
|
|
Monitor the PLC ladder program on the online display
|
| * |
Display the power flow on the ladder with a thick line and a color |
| * |
Display the I/O comments in the ladder program |
|
Specify and display the ladder program to check
|
| * |
Display the ladder monitor simultaneously with the alarm display |
| * |
Search with the step number or the device address |
|
Save the screen displaying the ladder program
|
| * |
Capture the screen and save it in a CF card |
| * |
Print out the ladder program displayed on the screen |
|
Change the device values
|
| * |
Change the preset values of the timer instruction and the counter instruction on the display *1 |
|
|
|
| NOTE |
| * |
The ladder monitor mode calls the device monitor feature. The device monitor feature allows you to see the device you are using and change the values.
→ Click here for the details of the Ladder Monitor Menu Screen. |
| * |
This information is as of September, 2008. |
|
|
|
|
*1
|
The current values of the timer instructions, the counter instructions, or the values of other devices can be changed with the device monitor feature. |
|
