FAQ
Can I convert texts registered as direct texts in a project file into the text table?

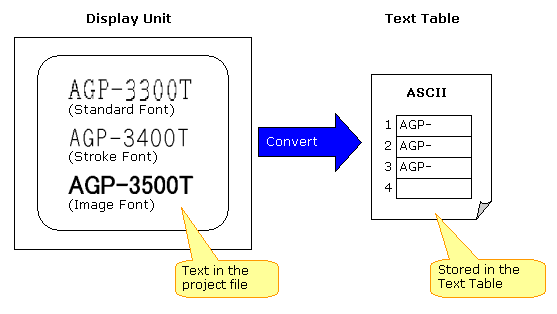

The Convert Text Table feature registers texts used in a project file to the Text Table.
The Text Table Converter can convert texts (Standard, Stroke, Image fonts) used on the followings in a project file.

- Base Screen
- Window Screen
- Keypad
- Header/Footer
- Text Screen
- Alarm



NOTE
- If texts have already been registered in the Text Table, the converted texts are registered to the blank lines in the order from smaller numbers.

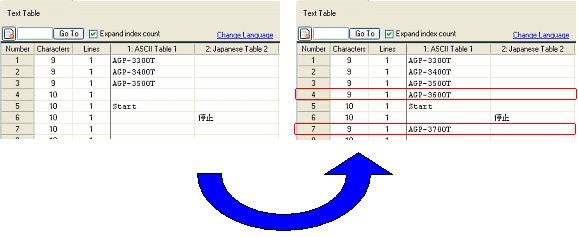

  Example: If there are some blank lines as follows, newly registered texts will be set in the blanks.


Setup Procedures

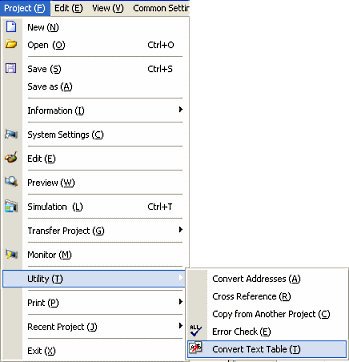

1. Select the [Project (F)] menu -> [Utility (T)] -> [Convert Text Table (T)].

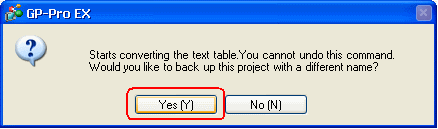

2. The following message window appears. Click [Yes].

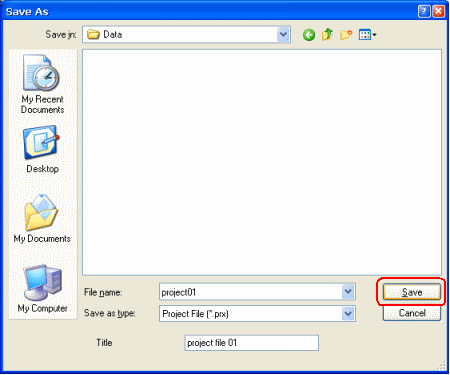

3. Enter the name of the backup file and click [Save].

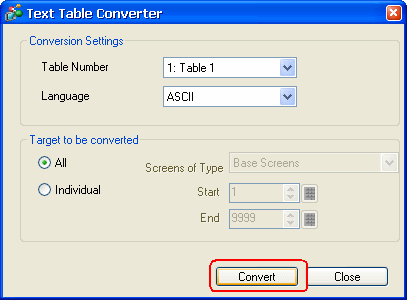

4. The Text Table Converter dialog box opens. Specify the [Table Number], [Language], and the target screens and click [Convert].

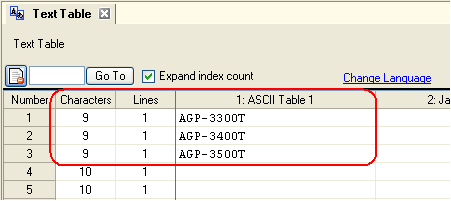

5. The specified direct texts have been converted into the Text Table.
