How to set the Image Font on the label of a Switch

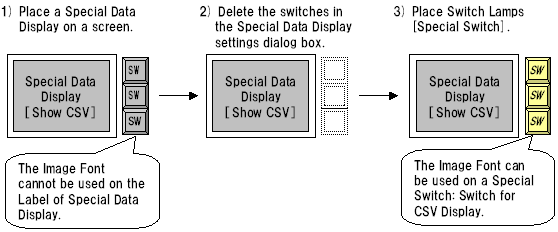

	The Image Font cannot be set on labels of the following parts' or features' operation switches. To set the Image Font on an operation switch, use a Switch Lamp: Special Switch. - Movie Player - Historical Trend Graph - Sampling Data Display - Special Data Display [Data Transmission] - Special Data Display [Filing] - Special Data Display [Show CSV] - Special Data Display [File Manager]


	Example: Special Data Display [Show CSV]

Setup Procedures
	How to create an operation switch to use with a Special Data Display [Show CSV]

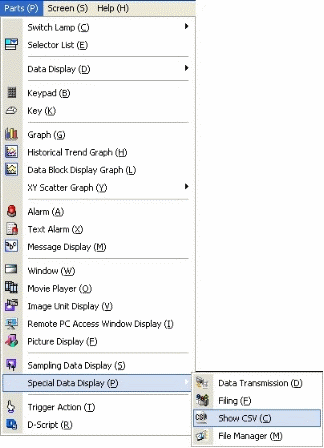

	1.	Select the [Parts (P)] menu -> [Special Data Display (P)] -> [Show CSV (C)].

	2.	Place the CSV Display on the screen and double-click it.

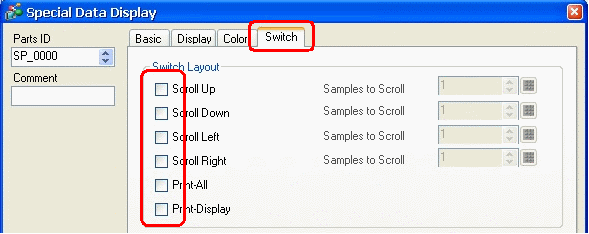

	3.	The Special Data Display settings dialog box appears and allows you to edit the CSV display. Open the Switch tab and check off all of the switches in the Switch Layout area.

	4.	Check if the switches have been deleted.

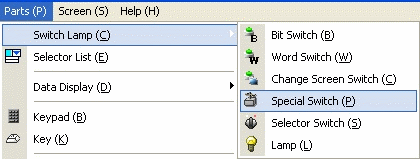

	5.	Next, select the [Parts (P)] menu -> [Switch Lamp (C)] -> [Special Switch (P)].

	6.	Place the Switch Lamp on the screen and double-click it.

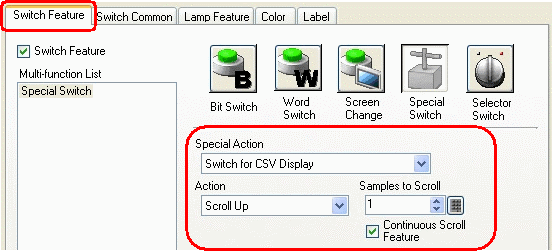

	7.	On the Switch Feature tab, select [Special Switch] and set the Special Action to "Switch for CSV Display." After actions to operate the CSV Display appear on the Action list, set the desired feature.

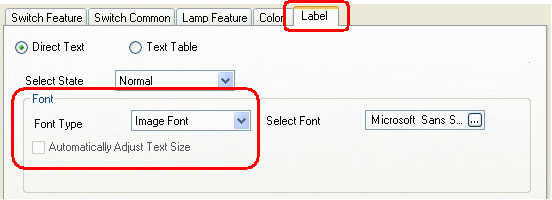

	8.	Open the Label tab and set the Font Type to "Image Font." To place more switches, repeat the procedures from 5 to 8.
