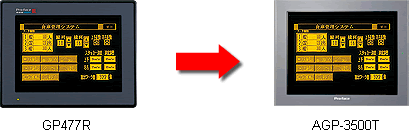

| I want to display the AGP-3500T/AST-3501C screens in monochrome like
the GP477R. |
|
|
|
The AGP-3500T/AST-3501C allows you to select a monochrome display as the color
settings. After you convert a project file from GP477R using the Project Converter, you can keep the same screen image without
adjusting parts color. |
|
|
* |
Setup Procedure
|
| |
1. |

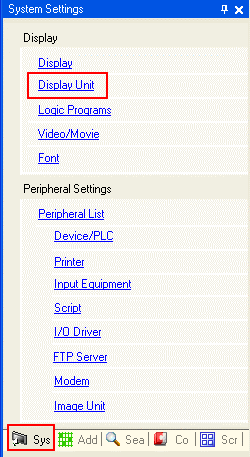

In the [System Settings] window of the Work Space,
select [Display Unit].
|
|
|
|
|
2.
|

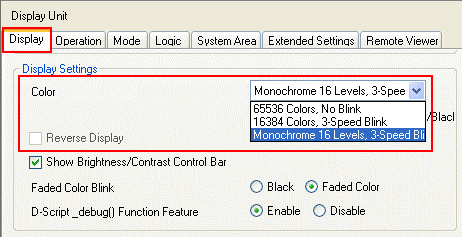

Open the [Display] tab, set the [Color] to "Monochrome 16 Levels…".
|
|
|
|
|
|
| NOTE |
| * |
The number of levels of monochrome display depends on the display unit model.
AGP-3500T: Monochrome 16 Levels, 3-Speed Blink
AST-3501C: Monochrome 8 Levels, Blink |
| * |
If you select monochrome display when using AGP-3500T or AST-3501C, you can select from "White/Black" or "Yellow/Black".
GP-Pro EX doesn't show screens in yellow and black, but the display unit will show yellow and black as same as the GP477R
EL display does. |
| |
|
|
|
|
|
