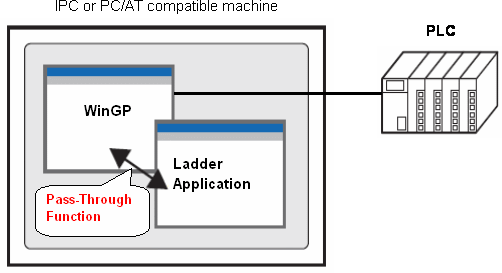

You can monitor a device by installing the Pass-Through function
to a PC running WinGP. You can maintain a device on one PC by checking both the display unit and a ladder application at
one time. |
|
|
|
| NOTE |
| * |
For installation and setup information on the Pass-Through function,
see Pass-Through Function Guide. |
| * |
To use the Pass-Through function with WinGP, transfer a device driver supporting the Pass-Through function to WinGP. For the information on supporting device drivers and the environment, see Pass-Through Function. |
|
|
* |
Setup Procedure
To activate WinGP, GP-Pro EX Pass-Through Configuration Tool, and a ladder tool at the same time on a PC, we recommend you use a loopback address (127.0.0.1). This section explains how to set it up. |
| |
1.
|

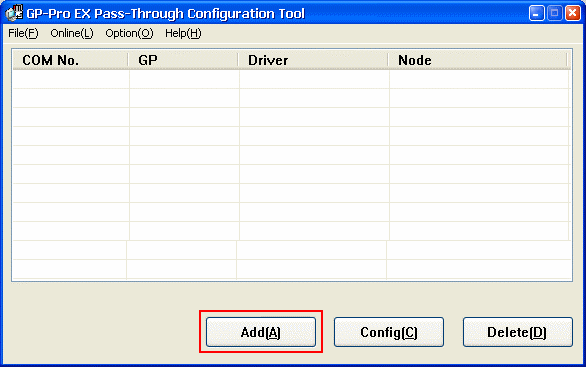

Start up WinGP and Pass-Through Configuration Tool.
Click [ADD (A)] on the [GP-Pro EX Pass-Through Configuration Tool] dialog box.
|
|
|
|
|
2.
|

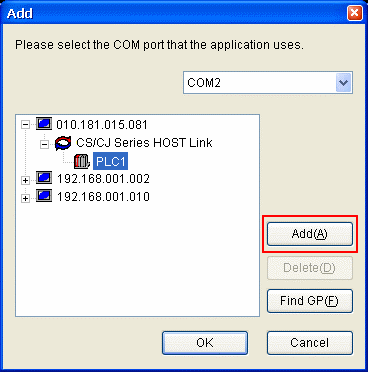

The [Add] dialog box will open and show the list of connectable devices. Click the [Add (A)] button.
|
|
|
|
|
3.
|
The [Add GP] dialog box will appear. Specify the loopback address "127.0.0.1".
|
|
|
|
|
4.
|
"127.000.000.001" will be added in the list. Select the device to connect and click [OK].
|
|
|
|
|
|
| IMPORTANT |
| * |
If "127.000.000.001" is not added in the list and a message "GP that corresponded to Pass-Through was not
found" is displayed, WinGP or the transferred driver may not support the Pass-Through function. For the supporting device
drivers, see Pass-Through Function. |
|
|
|
5.
|

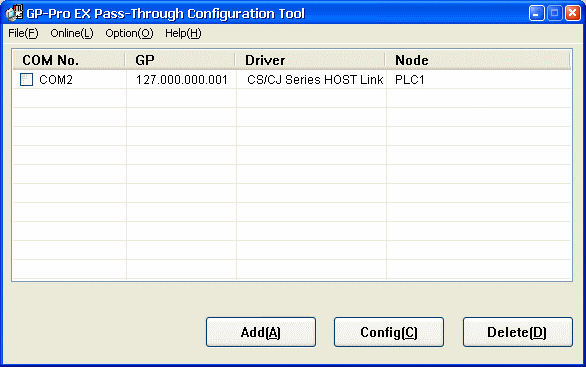

Setup is completed.
|
|
|
|
