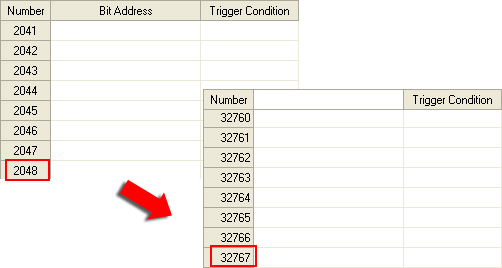

By installing a GP3000 Series Function Expansion Memory into a GP unit, the number of messages
that can be registered as alarm messages is expanded to 32767. This allows you to monitor a massive system via one GP unit. |
|
| IMPORTANT |
| * |
To expand the number of alarm registration, a GP3000 Series Function Expansion Memory (optional
product, sold separately) is required to be installed. |
| * |
Some models don't expand the number of alarm messages. See Which
models support Alarm Expansion? for a list of models that support this feature. |
|
|
|
|
|
| NOTE |
| * |
After expanding the number of alarm registrations, the display update time may be delayed. |
| * |
The number of alarm histories and the number of blocks cannot be expanded.
(768 alarm histories, 8 blocks) |
|
|
| * |
Setup Procedure

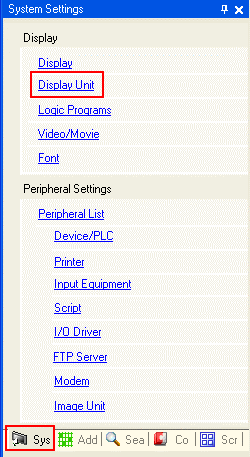

1. In the [System Settings] window of the Work Space, select [Display Unit].
|
|
|
|

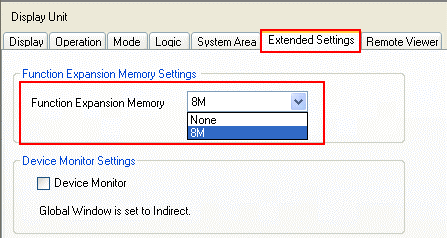

2. Select the [Extended Settings] tab and set the [Function Expansion Memory]
to "8M"
|
|
|
|

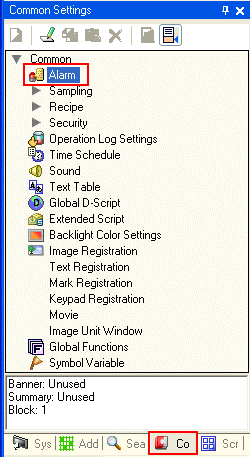

3. In the [Common Settings] window of the Work Space, select [Alarm].
|
|
|
|

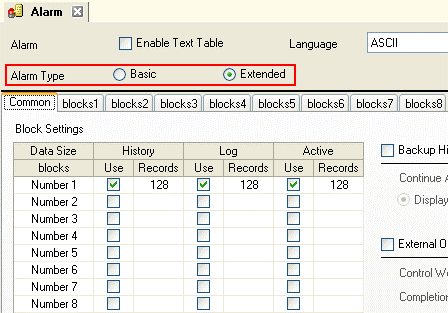

4. The [Alarm] setting screen will open. Set the [Alarm Type] to "Extended".
|
|
|
