Multiple remote PC access window displays can be set up on the base screen. But only one remote PC access window can be displayed on the display unit screen.
You can set the remote PC access window display for only base screen display. The remote PC access window display does not work on the window screen.
To switch [Remote PC Access Trigger Bit Address] to ON or OFF, choose a time interval equal to either communication cycle time or display scan time, whichever is longer.
Remote PC access window display uses one local window. Additionally, you use a special window when displaying the Remote PC Access popup keypad.
Refer to the following for the maximum number of windows displayed simultaneously on the screen.
12.9 Displaying Multiple Windows on a Single Screen
When you place the maximum number of window parts with [Continuous Read] on one screen, even when the panel is not open, you cannot display the Remote PC Access Window.
12.8.2 Restrictions for Displaying Windows
Remote PC access window display displays in the same direction as [Landscape], even if you set [Portrait] in for the [Orientation].
When there is a communication error between the Remote PC Access Window Display and another object on the same screen, the Remote PC Access Window Display will not run. Either restore the communication error, or draw a Remote PC Access Window Display on a separate screen.
You cannot change the size or contents of the window settings that display on the remote PC access window display.

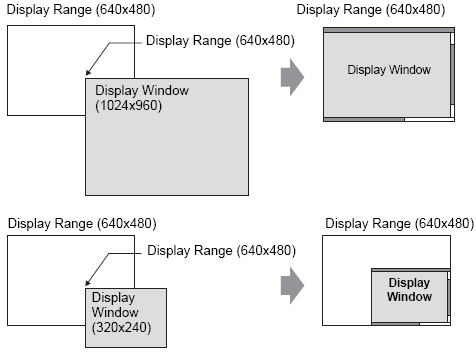

If the displayed window size and display position on the remote PC access window display exceeds the display range, it automatically displays within the display range. The popup keypad is also displayed within the display range. The order is as follows.
