 How to register the parts image
You can register the image (BMP, JPG, DPD, PNG files) that you have arbitrarily prepared at users' end as a parts image.

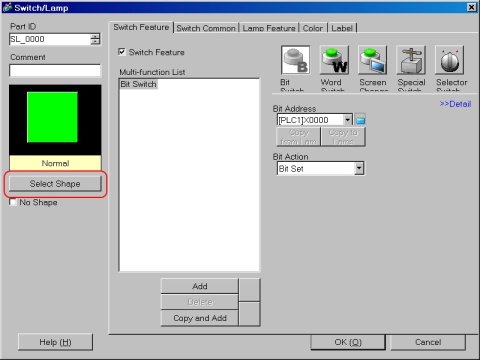

1. Double-click the part that you would like to register a new image onto. The setting dialog box will open. Click [Select Shape].

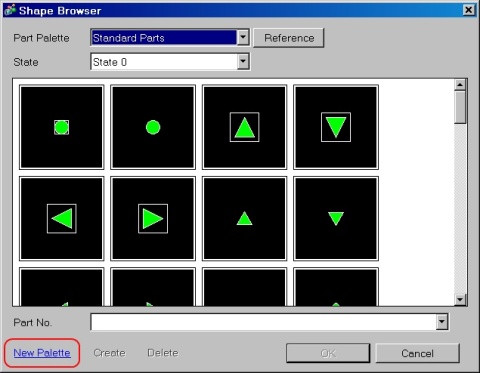

2. The [Shape Browser] dialog box will open. Click [New Palette].

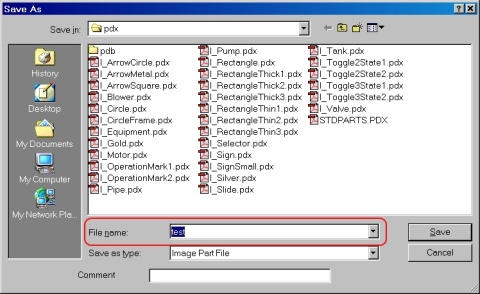

3. The [Save As] dialog box will open. Set [Save in] and [File name] of the palette that you would like to register newly. Click [Save].

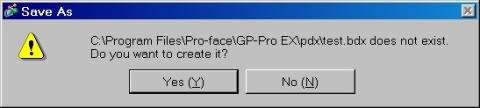

4. The following dialog box will open. Click [Yes(Y)].

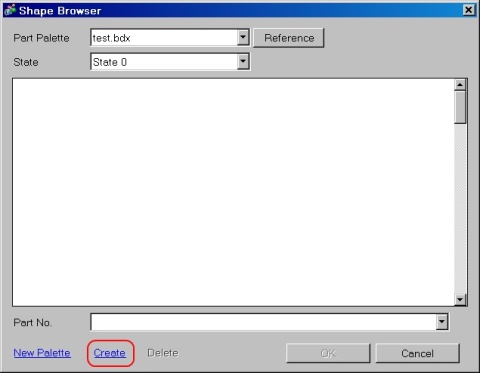

5. The [Shape Browser] dialog box for new registration will open. Click [Create].

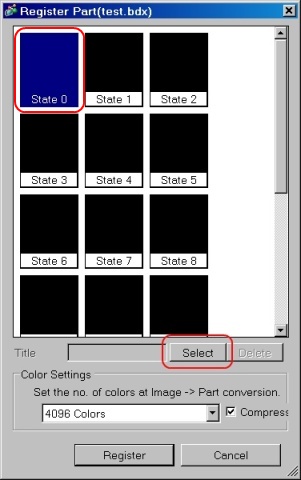

6. The [Register Part] dialog box will open. Select [State 0] and click [Select].

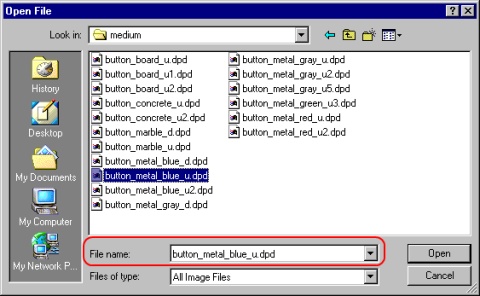

7. The [Open File] dialog box will open. Select [Look in] and [File name] of the image that you would like to register newly. Click [Open].

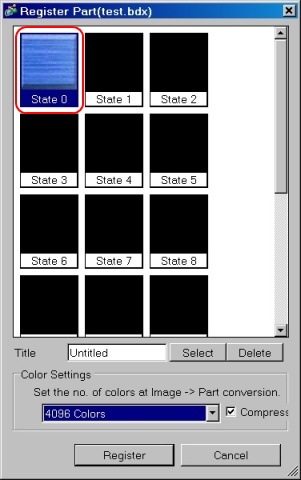

8. The image will be registered on [State 0] in the [Register Part] dialog box.

9. The registration will be completed after setting the image parts number and the number of the colors on [Title] and [Color Settings] as you like.
