Note:
When this driver is installed for Windows® Embedded of Pro-face products, please be sure that the Write Filter is disabled. We recommend that you re-enable the Write Filter after installation.
When using this touch panel driver, please note the following limitations.
[FP5000 Series]
The multi-touch function does not operate.
At the time of the installation of the touch panel driver, Please connect FP5000.
If Launcher has been already installed, the error message is displayed.
The driver will be installed correctly by rebooting according to the message contents.
DMT-DD does not support the extend mode in multi monitor. Please use on single monitor or set to the duplicate mode.
[SP5000 Series (SP-5B41/SP-5B40)]
The multi-touch function does not operate.
When using the touch panel calibration on Launcher, please switch to the Windows standard touch panel driver.
A supported display is Premium Display only. (Product Name: SP-5700TP, SP-5660TP, SP-5600TP, SP-5500TP) SP-5800WC and SP-5700WC are not supported.
DMT-DD does not support the extend mode in multi monitor. Please use on single monitor or set to the duplicate mode.
* For the limitation No.2, it has been improved for SP-5B41, and It can be improved for SP-5B40 by applying SP-5B40 update module (version 2.2 or later).
To revert to the Windows standard touch panel driver, Please uninstall the touch panel driver as follows.
[Device Addition] → Select [TP Driver] → Click [Uninstall]
The is the utility that displays icons to configure settings on SP5000 / FP5000 with convenient touch operation. (The installer language is English.)
Please use this driver when you want to touch operation with the mouse emulation mode.
Note
This touch panel driver cannot be used with Windows XP.
How to install "Setting Tool"
Download the tool onto the host.
Double [DMT-DDSetup.msi].
Setup wizard will start. Click [Next] for install.
Register Configuration File → “Mouse.mfd”
Press and Hold function can be set disable by setting Configuration File to “Mouse.mfd”.

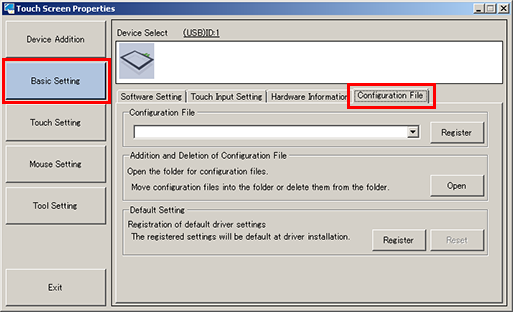

[Basic Setting] → [Configuration File]
Select [Mouse.mfd] in Configuration File → [Register]
* When the other configuration file is selected, mouse emulation mode will not work correctly.
Monitor Configuration
This function needs to be executed if mouse operation under multi-monitor environment is needed.
(1) Click the [Monitor configuration] button in the Device Addition screen.
(2) The screen like below will appear, starting on the leftmost monitor to another.
(3) Tap the touch screen on this screen twice.
(4) The touched touch screen will be indicated on the screen
(5) Once the setting for the current monitor is completed, press [Enter].
If there are multiple monitors,the screen on the procedure2 will appear on the next monitor.
(6) Once pressing [Enter] on the last monitor, the setting is completed.
Press [ESC] if you want to cancel in the middle.
Entry Right-click → “2-point touch”
User can use 2-point touch as Right click by this setting
After setting Configuration File, [Right-click] tab is added in [Basic Setting].
[Right-click] → select [2-point touch] in Method of right-click → [Entry]
Confirm the driver in Device Manager
[Device Manager] → [DMC Mouse Filter(MultiMonitor)]
After you install DMT-DD driver, you can see the “DMC Mouse Filter” in the device driver list.
Please confirm it.
Update History:
[Ver. 1.16] (Jan. 26, 2018)
Modified
[Ver. 1.5] (Jun. 29, 2015)
New
