19.8 Storing Alarm Messages in the CF Card or USB Storage Device

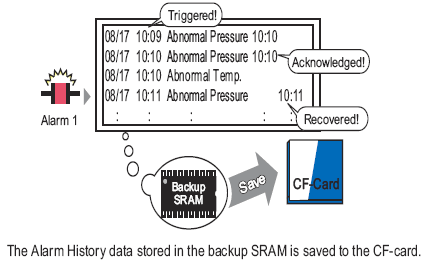

Saves the alarm history data from the display unit backup SRAM to the CF Card or USB storage.

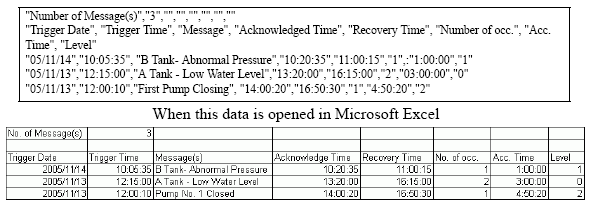

Saved in CSV format, you can edit the alarm data with any spreadsheet application such as Microsoft Excel.



Saving to a CF Card or USB Storage

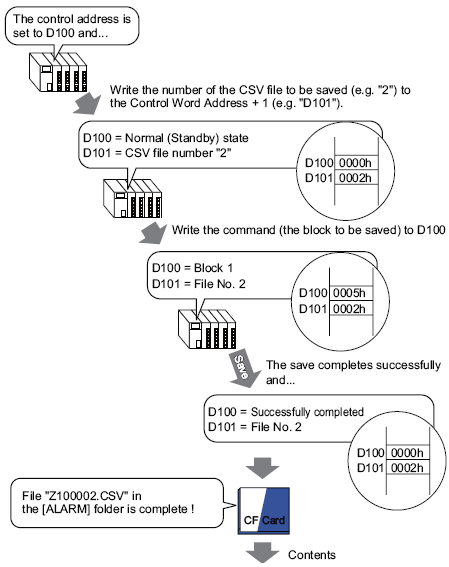

To save data to the CF card, manage the designated control word address as follows:

19.8.1 Procedure - Storing Alarm Messages in the CF Card or USB Storage Device

19.8.2 Control Word Address for Data Save
