This address controls writing data. Specify the file number and write the command to the address. The data is saved to the CF Card or USB storage device.
The data are written to the CF Card or USB Storage device. The processing results (status) are reflected in the address.
|
Mode |
Word Data |
Description |
|---|---|---|
|
Command |
0001h |
Filing Data |
|
0002h |
GP-PRO/PB III for Windows Logging data (compatible)*1 | |
|
0003h |
GP-PRO/PB III for Windows Line Chart data (compatible) | |
|
0004h |
GP-PRO/PB III for Windows Sampled data (compatible) | |
|
0005h |
Block 1's Alarm History data | |
|
0006h |
Block 2's Alarm History data | |
|
0007h |
Block 3's Alarm History data | |
|
0008h |
Block 4's Alarm History data | |
|
0009h |
Block 5's Alarm History data | |
|
000ah |
Block 6's Alarm History data | |
|
000bh |
Block 7's Alarm History data | |
|
000ch |
Block 8's Alarm History data | |
|
0020h |
GP-PRO/PB III for Windows Logging (loop) auto-save start (compatible)*2 | |
|
0021h |
GP-PRO/PB III for Windows Logging (loop) auto-save completion (compatible) | |
|
Status |
0000h |
Completed Successfully |
|
0100h |
Write Error | |
|
0200h |
The CF Card/USB storage device is not inserted, or the CF Card cover is not closed. | |
|
0300h |
No data to be loaded (when no data is specified) | |
|
0400h |
File Number Error (File number is outside of range) | |
|
2000h |
GP-PRO/PB III for Windows Logging (loop) auto-save responding correctly (compatible) Control Address becomes this value during the auto-save mode. When the value is changed, the auto-save mode finishes. |
*1 CSV file is output using the format defined in the [Display/Save in CSV] tab. The saved sampling group number is fixed (1). If the defined file number already exists, then the file is overwritten.
*2 If the defined file number already exists, then the content is appended to the file.
Designate a File from 0 to 65535 in the address following the control word address prior to writing a command.

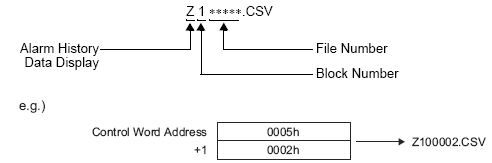

For example, after writing a command, Alarm History data is saved to the CF Card/USB storage [ALARM] folder with the following file name:
When the CF Card is reset by the display unit, a folder is created to save data.
|
Folder |
Data to be saved |
File Name |
|---|---|---|
|
\FILE |
Filing Data |
F*****.BIN |
|
Transfer CSV Data |
ZR*****.CSV | |
|
\LOG |
GP-PRO/PB III for Windows Logging data (compatible) |
ZL*****.CSV |
|
\DATE |
Image Screen |
I*****.BIN |
|
Sound Data |
O*****.BIN | |
|
\CAPTURE |
Screen Capture Video Capture |
CP*****.JPG |
|
\MOVIE |
Movie File |
*.SDX |
|
\TREND |
GP-PRO/PB III for Windows Line Chart data (compatible) |
ZT*****.CSV |
|
GP-PRO/PB III for Windows Sampled data (compatible) |
ZS*****.CSV | |
|
\ALARM |
Block 1's Alarm History data |
Z1*****.CSV |
|
Block 2's Alarm History data |
Z2*****.CSV | |
|
Block 3's Alarm History data |
Z3*****.CSV | |
|
Block 4's Alarm History data |
Z4*****.CSV | |
|
Block 5's Alarm History data |
Z5*****.CSV | |
|
Block 6's Alarm History data |
Z6*****.CSV | |
|
Block 7's Alarm History data |
Z7*****.CSV | |
|
Block 8's Alarm History data |
Z8*****.CSV | |
|
\SRAM |
Backup SRAM data |
ZD*****.BIN |
|
\SAMP01 |
Sampling Group 1's data |
SA*****.CSV |
|
・ ・ ・ |
・ ・ ・ |
|
|
\SAMP64 |
Sampling Group 64's data |
SA*****.CSV |
