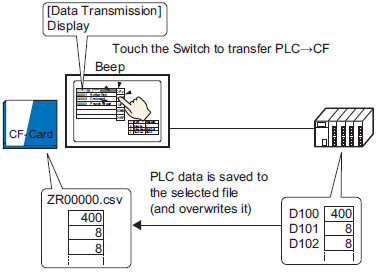

The recipe (CSV data) saved on the external storage device displays in a list on the display unit. Touch a file in the list to write the file to the device/PLC.
Or, you can overwrite the selected files on the external storage device with device/PLC data.
When you manually transfer data from the device to external storage, you cannot save the data as a new file. You can only overwrite when selecting files from a Special Data Display [Data Transmission] part.
To overwrite Device/PLC data in an existing CSV file, you can select [All Files] or [Overwrite Data Only]. The [Overwrite Data Only] option overwrites dates and values only and leaves other data unchanged.
26.5.1 Procedure - Transferring CSV Data Recipes Using Touch
