PS-2000B Specification


PS-2000B Specifications

This product is discontinued as of November 30, 2010. Please see the Discontinued Items page.

Functional Specifications

OS Windows® 2000 / Windows® XP / Windows® XP Embedded
CPU Celeron® 566MHz / Pentium® III 1GHz
Main Memory SDRAM 128MB or 256MB or 512MB(DIMM socket ×1: Max.512MB)
BIOS Phoenix First BIOS
2nd Cache Memory Depends on CPU
Graphic*1 VGA (640 x 480 dots) to UXGA (1600 x 1200 dots)
VESA 16 colors/256 colors/32K colors*2
Video Memory Maximum 32MB (UMA Method)
Interface Serial RS232C(FIFO) COM1(Dsub 9 pin male)(RI/+5V switchable)
COM2(Dsub 9 pin male)
COM3(Dsub 9 pin male)(RI/+5V switchable)
COM4(Dsub 9 pin male)
USB 4 ports
Ethernet 10BASE-T/100BASE-T x2
Keyboard/Mouse PS/2 Interface (mini DIN 6 pin female) x1
Disk FDD Interface: 2 mode 3.5 type FDD Interface 1 port
IDE Interface: 2.5 type HDD Interface 2 port
Video Digital Visual Interface (connecting with PS-2000B Display/Analog RGB Interface)
RAS Function RAS interface(Dsub25 pin male)
  1. 1600 x 1200 dots: Up to 256 colors.
  2. The display resolution used must be supported by the PS Series Type-B unit's OS, applications and the external display unit.

General Specifications

ElectricalRated Voltage AC100V/240V
Allowable Voltage Range AC85~265V
Rated Frequency 50/60Hz
Power Consumption 110VA or less
Allowable Pause Duration Shorter than 1cycle (however, pause occurrences must be more than 1 second apart)
Voltage Endurance AC 1500V at 20mA for 1 minute (between live wire and grounding (FG) terminal)
Insulation Resistance Greater than 10Mohm at DC 500V (between live wire and grounding (FG) terminal)
EnvironmentalAmbient Air Temperature*2 5~50℃(HDD in use), 0~50℃(HDD not in use)
Storage Temperature -20~+60℃
Ambient Humidity 10% RH to 85% RH (no condensation)
Storage Humidity
Corrosive Gases Free of corrosive gases

Noise Endurance

(Impulse Noise)

Noise Voltage: 1500Vp-p Pulse Duration: 50ns, 500ns, 1µs Rise Time: 1ns
Grounding Protective grounding: D-Type grounding, Function grounding: D-Type grounding
Structure 6kV IEC61000-4-2
Cooling Method 9.8m/s2(10~25Hz X、Y、Z directions every 30 minutes)
w/HD installed:4.9m/s2
StructuralWeight about 4.5kg

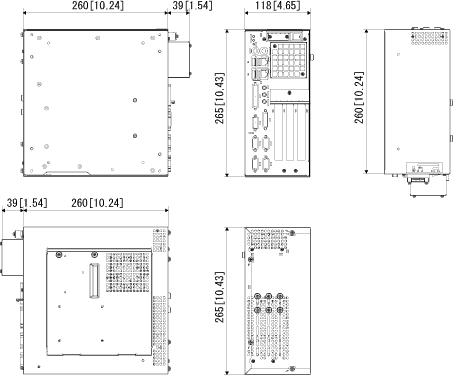

External Dimensions 118W×265H×299Dmm (not including projections)
when FDD drive unit attached
159W×265H×299Dmm (not including projections)

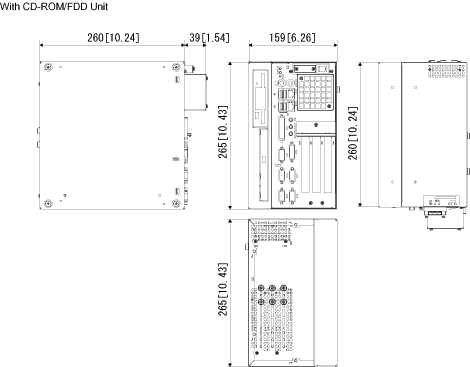

External view with CD/FD unit attached
