Specifications of PFXLM4B01DAC (Rear Module Analog / Source Output Type)

Display Specifications

Virtual Resolution (pixels)			320 x 240 (QVGA)
Language Fonts *1			Japanese, ASCII, Chinese (Simplified), Chinese (Traditional), Korean, Cyrillic, Thai
Character sizes			8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts
Font sizes			Width can be expanded 1 to 8 times. Height can be expanded 1/2 and 1 to 8 times.
8 x 8 pixels			40 characters per row x 30 rows
8 x 16 pixels			40 characters per row x 15 rows
16 x 16 pixels			20 characters per row x 15 rows
32 x 32 pixels			10 characters per row x 7 rows
Memory	Application memory *2		FLASH EPROM 16 MB (includes screen editing program and extended logic program)
	Logic program area		FLASH EPROM 132 KB *3 (equivalent to 15,000 steps)
	Font area		FLASH EPROM 8 MB (when limit exceeded, uses application memory)
	Data backup		nvSRAM 128 KB
	Variable area		nvSRAM 64 KB
Touch Panel	Type		Resistive Film (analog)
Touch Panel	Lifetime		1 million touches or more
Interface	Serial (COM1)		RS-232C/RS485 x 1 RS-232C (Connector type: RJ45, Isolation: None, Maximum baud rate: 115,200 bps, Cable Type: Shielded, Cable Maximum length: 15 m (49 ft), 5 Vdc power supply for RS-232C: None) RS-485 (Connector type: RJ45, Isolation: None, Maximum baud rate: 115,200 bps, Cable Type: Shielded, Cable Maximum length: 200 m (656 ft), Polarization: Setting is required via software when connecting Multiple LTs. Refer to the "GP-Pro EX Device/ PLC Manual" for the setting. 5 Vdc power supply for RS-485: None) *4
	CANopen (master)		CAN-CiA (ISO 11898-2:2002 Part 2), Connector: D-sub9 (plug)
	Ethernet		IEEE802.3 compliant Ethernet x 1 (Connector type: RJ45, Driver: 10 M half duplex (auto negotiation)/ 100 M full duplex (auto negotiation), Cable type: Shielded, Automatic cross-over detection: Yes)
	USB (Type A)		USB 2.0 (Type A) x 1 (Power Supply Voltage: 5Vdc +/-5%, Maximum Current Supplied: 500mA, Maximum Transmission Distance: 5m (16.4 ft.))
	USB (Mini-B)		USB 2.0 (Mini-B) x 1
	Control	DIO(Source Type)	12 Points Standard Input (including 2 Points for Fast Input) 6 Points Standard Output and 2 Points Fast Output
	Control	AIO	2 ch analog inputs (13-bit) and 2 ch analog inputs (16-bit) for Thermocouple 2 ch analog outputs (12-bit)

Please refer to the GP-Pro EX Reference Manual for details on font types and character codes.
Capacity available for user application.
Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
2-wire connection is available for RS-485. When a Device/PLC supports 2-wire connection, 4 wires (RXD+, TXD+, RXD-, and TXD-) can be short-circuited to be 2 wires (RXD+ and TXD+ = D1, RXD- and TXD- = D0). For details on the connection, refer to the connection manual.

Page Top

General Specifications

Supported Standards and Regulations
Rated Input Voltage	24 Vdc
Input Voltage Limits	20 to 28.8 Vd
Acceptable Voltage Drop	10 ms or less at 20.4 Vdc
Power Consumption	10 W or less
In-Rush Current	30 A or less at 28.8 Vdc
Voltage Endurance between power terminal and frame ground (FG)	500 Vdc for 1 minute
Insulation Resistance between power terminal and FG	10 MΩ or higher at 500 Vdc

Page Top

Environmental Specifications

Standard compliance		IEC 61131-2
Ambient operating temperature	Horizontal installation	0 to 50°C (32 to 122°F)
Ambient operating temperature	Vertical installation	0 to 40°C (32 to 104°F)
Storage temperature		- 20 to 60°C (- 4 to 140°F)
Storage altitude		0 to 10,000 m (0 to 32,808 ft)
Operating altitude		0 to 2,000 m (0 to 6,560 ft)
Surrounding Air and Strage Humidity		5 to 85% w/o condensation (non-condensing, wet bulb temperature 39°C (102.2°F) or less)
Degree of pollution	IEC60664	2
Degree of protection	IEC61131-2	IP20 with protective covers in place
Corrosive gases		Free of corrosive gases
Dust		≤0.1 mg/m³ (10^-7 oz/ft³) (non-conductive levels)
Atmospheric pressure (Operating Altitude)		800 to 1,114 hPa (2000 m (6,561 ft) or lower)
Vibration resistance	Mounted on a DIN rail	3.5 mm (0.138 in.) fixed amplitude from 5 to 8.4 Hz 9.8 m/s² (1 gn) fixed acceleration from 8.4 to 150 Hz
Vibration resistance	Mounted on a panel	3.5 mm (0.138 in.) fixed amplitude from 5 to 8.6 Hz 9.8 m/s² (1 gn) fixed acceleration from 8.6 to 150 Hz
Mechanical shock resistance	Mounted on a DIN rail	147 m/s² (15 gn) for a duration of 11 ms
Mechanical shock resistance	Mounted on a panel	147 m/s² (15 gn) for a duration of 6 ms
Electrostatic discharge	IEC/EN 61000-4-2	8 kV (air discharge) 6 kV (contact discharge)
Rediated radio frequency electromagnetic fields	IEC/EN 61000-4-3	10 V/m (80 MHz to 3 GHz)
Fast transients / Burst noise	IEC/EN 61000-4-4	Power lines: 2 kV Digital I/O: 1 kV Relay outputs: 2 kV Ethernet line: 1 kV COM line: 1 kV CAN line: 1 kV
Surge immunity	IEC/EN 61000-4-5	Power supply: CM: 1 kV; DM: 0.5 kV Digital I/O: CM: 1 kV; DM: 0.5 kV Shielded cable: 1 kV CM = common drive DM = differential drive
Conducted disturbances induced by radio-frequency fields	IEC/EN 61000-4-6	10 Veff (0.15 to 80 MHz)
Mains terminal dusturbance voltage	EN 55011 (IEC/CISPR11)	150 to 500 kHz, quasi peak 79 dBμV
Mains terminal dusturbance voltage	EN 55011 (IEC/CISPR11)	500 kHz to 30 MHz, quasi peak 73 dBμV
Electric field strength	EN 55011 (IEC/CISPR11)	30 to 230 MHz, quasi peak 10 m @40 dBμV/m
Electric field strength	EN 55011 (IEC/CISPR11)	230 MHz to 1 GHz, quasi peak 10 m @47 dBμV/m
Vibration immunity (operating)		IEC 61131-2
Protection structure		NEMA TYPE 4X (indoors, with panel embedded)
Protection (front module)		IP65f - (IEC 60529)
Protection (rear module)		IP 20 - (IEC 60529)
Shock immunity (operating)		IEC 61131-2 15 gn 11 ms
Cooling method		Natural air circulation
Weight		include Rear module installation adapter : 544g (19.19 oz) / only Rear module : 388g (13.69 oz)
Color		RAL 7032
Material		PC/PBT

Page Top

Digital Inputs

Digital Input Characteristics

Rated Current		5 mA
Inrush Values	Voltage	30 Vdc
Inrush Values	Current	6.29 mA max.
Input impedance		4.9 kΩ
Input type		Sink/Source
Rated voltage		24 Vdc
Maximum Allowable Voltage		28.8 Vdc
Input limit values	ON Voltage	15 Vdc or more (15 to 28.8 Vdc)
	OFF Voltage	5 Vdc or less (0 to 5 Vdc)
	ON Current	2.5 mA or more
	OFF Current	1.0 mA or less
Isolation	Method	Photo coupler Isolation
Isolation	Between internal logic	500 Vdc
Filtering		0.5 ms x N (N is 0 to 63)
IEC61131-2 edition 3 type		Type 1
Compatibility		Supports 2 wire and 3 wire sensors
Cable type and length		Shielded: Maximum 100 m (328 ft) Non-shielded: 50 m (164 ft)
Terminal blocks		Type: 3.5 mm (0.137 in.) pitch Terminal blocks are removable
Input paralleling		No

* I0 and I1 are Fast input terminals and can be also used as a Standard input. For specifications, see the specifications of Fast Input.

Page Top

High Speed Counter Input Characteristics

Rated Current	Voltage	24 Vdc
Rated Current	Current	7.83 mA
Inrush values	Voltage	30 Vdc
Inrush values	Current	9.99 mA
Input impedance		3.2 kΩ
Input type		Sink/Source
Rated voltage		24 Vdc
Maximum Allowable Voltage		28.8 Vdc
Input limit values	ON Voltage	15 Vdc or more
	OFF Voltage	5 Vdc or less
	ON Current	5 mA or more
	OFF Current	1.5 mA or less
Isolation	Method	Photo coupler Isolation
Isolation	Between channels logic	500 Vdc
Filtering		None, 4 μs, 40 μs
IEC61131-2 edition 3 type		Type 1
Compatibility		Supports 2 wire and 3 wire sensors
Cable	Type	Shielded
Cable	Length	Maximum 10 m (33 ft)
Terminal blocks		Type: 3.5 mm (0.137 in.) pitch Terminal blocks are removable
Maximum frequency		· 100 kHz is the maximum frequency for Single-phase · 50 kHz is the maximum frequency for 2-phase · Duty Rate: 45 to 55%
Phase Counting Mode		· Single phase · 2 Phase x2 · 2 Phase x4 · 2 Phase x2 Reverse · 2 Phase x4 Reverse
Response time	Marker	1 ms
	Preload	1 ms
	Prestrobet	1 ms
	Synchronize output	2 ms
Min. Pulse Width(Pulse input)		Counter:	Pulse Catch Input signal ON width
Input paralleling		No

Page Top

Digital Outputs

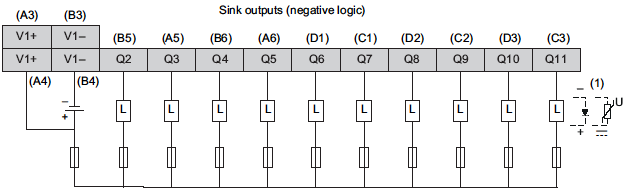

Transistor Output Characteristics

Rated Voltage		24Vdc
Output range		19.2 to 28.8 Vdc
Output type		Source
Rated current		0.3 A/point, 3.0 A/common
Residual voltage		1.5 Vdc or less for I= 0.1A
Delay		Off to on (0.3 A load): 1.1ms On to off (0.3 A load): 2ms NOTE: The delay is not including the cable delay.
Isolation	Method	Photo coupler Isolation
Isolation	Between internal logic	500 Vdc
Minimum resistor load		80 Ω at 24 Vdc
Cable length		Non-shielded: 150 m (492 ft)
Protection against short circuit		No
Terminal blocks		Type: 3.5 mm (0.137 in.) pitch Terminal blocks are removable

NOTE: Refer to LT4201TM/4301TM Hardware Manual about Protecting Outputs from Inductive Load Damage for additional information on this topic.

(1) When connecting as power surges

* To use 3.0A common current, connect to A3 and A4 for V1+. (B3 and B4 for V1-)

Caution: Q0 and Q1 circuits are push-pull circuits. The following is the operation of the push-pull circuit at the Sink Output and the Source Output.
Sink Output: +24(V) is output to terminal Q0, Q1 when the logic for Q0, Q1 is off
Source Output: 0(V) is output to terminal Q0, Q1 when the logic for Q0, Q1 is off

Standard Output terminals Q2 or later are common open collector outputs.

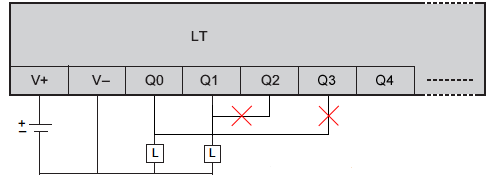

Do not connect Fast Output terminals Q0, Q1 and Standard Output terminals Q2 or later. It will short.

If you add a manual circuit to terminal Q0, Q1, isolate the manual circuit and terminal Q0, Q1 with a relay. Without isolation, it will short.

Page Top

Pulse Output/PWM Output/High-speed Counter (Synchronize Output) Characteristics

Output type		Source
Rated voltage		24 Vdc
Power supply input range		19.2 to 28.8 Vdc
Power supply reverse protection		Yes
Pulse Output/PWM output current		50 mA/point, 100 mA/common
Response time for original input		2 ms
Isolation resistance	Between fast outputs and internal logic	10 MΩ or more
Isolation resistance	Between power supply port and protective earth ground (PE) = 500 Vdc	10 MΩ or more
Residual voltage	for I = 0, 1 A	1.5 Vdc or less
Delay		Off to on (50 mA load): 1.1ms On to off (50 mA load): 1.1ms NOTE: The delay is not including the cable delay.
Minimum load impedance		80 Ω
Maximum Pulse output frequency		50 KHz
Maximum PWM output frequency		65 kHz
Accuracy Pulse Output/ PWM Output	Frequency	Accuracy	Duty
	10 to 100 Hz	0.1%	0 to 100%
	10 to 1000 Hz	1%	1 to 99%
	1.001 to 20 kHz	5%	5 to 95%
	20.001 to 45 kHz	10%	10 to 90%
	45.001 to 65 kHz	15%	15 to 85%
Duty rate range		1 to 99%
Cable	Type	Shielded, including 24 Vdc power supply
Cable	Length	Maximum 5 m (16 ft)
Terminal blocks		Type: 3.5 mm (0.137 in.) pitch Terminal blocks are removable

NOTE: When using the acceleration/deceleration pulse output, there is a 1% maximum error for the frequency.

If you add a manual circuit to terminal Q0, Q1, isolate the manual circuit and terminal Q0, Q1 with a relay. Without isolation, it will short.

Page Top

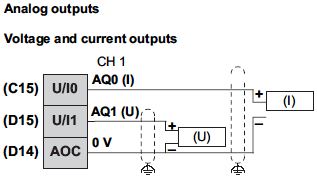

Analog Inputs and Analog Outputs

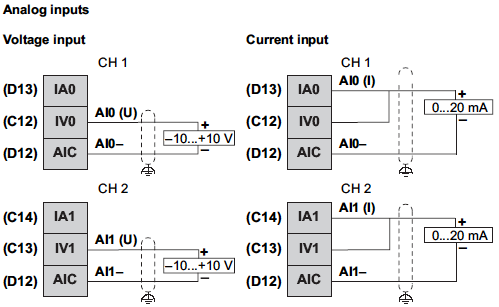

Analog Input Characteristics

Characteristic		Voltage input	Current input
Number of maximum input		2
Input type		Single-ended
Input range		-10 to 10 Vdc/0 to 10 Vdc	0 to 20 mA/4 to 20 mA
Input impedance		1 MΩ or more	250 ± 0.11% Ω
Sample duration time		10 ms per channel + 1 scan time
Total input system transfer time		20 ms + 1 scan time
Input tolerance	Maximum deviation at 25°C (77°F) without electromagnetic disturbance	± 1% of the full scale
Input tolerance	Maximum deviation	± 2.5% of the full scale
Digital resolution		13 bits
Temperature drift		± 0.06% of the full scale
Common mode characteristics		80 db
Cross talk		60 db
Non-linearity		± 0.4% of full scale
Input value of LSB		5 mV	10 μΑ
Maximum allowed overload (no damages)		± 30 Vdc (less than 5 minutes) ± 15 Vdc (No damage)	± 30 mA dc
Protection type		Photo coupler between input and internal circuit
Cable	Type	Shielded
Cable	Length	Must be less than 3 m for IEC61131-2 conformance. Maximum transmission distance is 10m.
Terminal blocks		Type: 3.5 mm (0.137 in.) pitch Terminal blocks are removable
Isolation		External input: Photo-coupler isolation Between channels: Non-isolated

Page Top

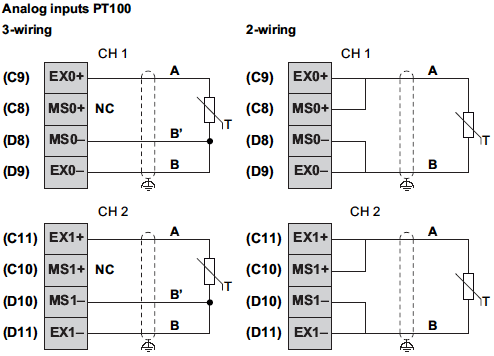

Temperature Input (Temperature Probes) Characteristics

* Excluding errors caused by the wiring
Input sensor type		Pt100/Pt1000/Ni100/Ni1000
Input temperature range		Pt100/Pt1000: -200 to 600°C (-328 to 1112°F) Ni100/Ni1000: -20 to 200°C (-4 to 392°F)
Measuring current	Pt100/Ni100	1.12 mA ± 3.5%
Measuring current	Pt1000/Ni1000	0.242 μA ± 3.5%.
Input impedance		Typically 10 MΩ
Sample duration time		10 ms+1 cycle time
Wiring type		2-wire or 3-wire connection configured by software for all inputs
Conversion mode		Sigma delta type
Input filter		Low pass
Resolution temperature value		0.1°C (0.18°F)
Detection type		Open circuit (detection on each channel)
Input tolerance*	Maximum deviation at 25°C (77°F) without electromagnetic disturbance	± 5°C (41°F)
Input tolerance*	Maximum deviation at 25 to 50°C (77 to 122°F)	Pt type: ± 5.6°C (42.08°F) Ni type: ± 5.2°C (41.36°F)
Temperature drift		30 ppm/°C
Digital resolution		16 bits
Rejection in differential mode	50/60 Hz	Typically 60 dB
Common mode rejection	50/60 Hz	Typically 80 dB
Isolation Method		Photocoupler Isolation
Permitted input signal		±5 Vdc max.
Cable length	Pt100/Ni100	20 Ω or less
Cable length	Pt1000/Ni1000	200 Ω or less
Terminal blocks		Type: 3.5 mm (0.137 in.) pitch Terminal blocks are removable
Noise resistance - cable		Shielded cable is necessary

Page Top

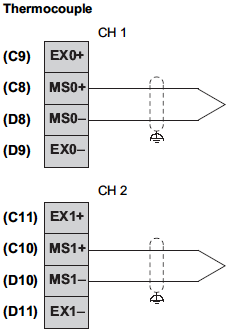

Temperature Input (Thermocouple) Characteristics

(1) Temperature measurement on PCB at terminal block for cold junction compensation.
Input sensor type		Thermocouple
Input type range⁽¹⁾		J (-200 to 760°C) (-328 to 1400°F) K (-240 to 1370°C) (-400 to 2498°F) R (0 to 1600°C) (32 to 2912°F) B (200 to 1800°C) (392 to 3272°F) S (0°C to 1600°C) (32 to 2912°F) T (-200 to 400°C) (-328 to 752°F) E (-200 to 900°C) (-328 to 1652°F) N (-200 to 1300°C) (-328 to 2372°F)
Input impedance		Typically 10 MΩ
Sample duration time		10 ms+1 cycle time
Conversion mode		Sigma delta type
Digital resolution		16 bits
Input filter		Low pass
Resolution temperature value		0.1°C (0.18°F) (Type J)
Detection type		Open circuit (detection on each channel)
Input tolerance	Maximum deviation at 25°C (77°F) without electromagnetic disturbance	0.2 % of the full scale, plus standard point of compensation precision at +/- 6°C.
Input tolerance	Maximum deviation	0.28 % of full scale range
Temperature drift		30 ppm/°C
Input tolerance - terminal temperature compensation		± 5°C (41°F) after 10 min.
Cold junction compensation in the temperature range (0 to 50°C (122°F))		Internal cold junction error: +/- 6°C (42.8°F) after operating 45 minutes.
Rejection in differential mode	50/60 Hz	Typically 60 dB
Common mode rejection	50/60 Hz	Typically 80 dB
Isolation Method		Photocoupler Isolation
Permitted input signal		± 5 Vdc max.
Warm up time		45 minutes
Terminal blocks		Type: 3.5 mm (0.137 in.) pitch Terminal blocks are removable
Noise resistance - cable		Shielded cable is necessary

Page Top

Analog Output Characteristics

Characteristic		Voltage Output	Current Output
Maximum number of outputs		2
Output range		-10 to 10 Vdc/0 to 10 Vdc	0 to 20 mA / 4 to 20 mA
Load impedance		2 kΩ or more	300 Ω or more
Application load type		Resistive load
Setting time		10 ms
Total output system transfer time		10 ms + 1 scan time
Output tolerance	Maximum deviation at 25°C (77°F) without electromagnetic disturbance	± 1% of the full scale
Output tolerance	Maximum deviation	± 2.5% of the full scale
Digital resolution		12 bits
Temperature drift		± 0.06% of the full scale
Output ripple		± 50 mV
Cross talk		60 db
Non-linearity		± 0.5% of full scale
Output value of LSB		6 mV	12 μΑ
Protection type		Photo coupler between input and internal circuit
Output protection		Short circuit protection: Yes Open circuit protection: Yes
Output behavior if input power supply is less than the power failed threshold		Set to 0
Cable	Type	Shielded
Cable	Length	Must be less than 3 m for IEC61131-2 conformance. Maximum transmission distance is 10m.
Terminal blocks		Type: 3.5 mm (0.137 in.) pitch Terminal blocks are removable
Isolation		External input: Photo coupler isolation Between channels: Non-isolated

Page Top

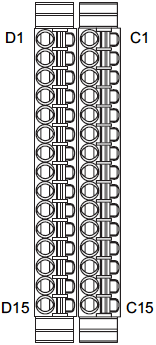

Terminal Blocks

Group	Pin	Signal Name	Group	Pin	Signal Name
Fast Output	A1	V0+	Fast Output	B1	V0-
Fast Output	A2	Q1	Fast Output	B2	Q0
Standard Output	A3	V1+	Standard Output	B3	V1-
	A4	V1+		B4	V1-
	A5	Q3		B5	Q2
	A6	Q5		B6	Q4

Group	Pin	Signal Name	Group	Pin	Signal Name
Standard Output	C1	Q7	Standard Output	D1	Q6
	C2	Q9		D2	Q8
	C3	Q11		D3	Q10
Fast Input/Standard Input	C4	I0	Fast Input/Standard Input	D4	IC0
Fast Input/Standard Input	C5	I1	Standard Input	D5	I2
Standard Input	C6	I3		D6	IC1
	C7	I5		D7	I4
	C8	I7		D8	I6
	C9	I9		D9	I8
	C10	IC2		D10	IC2
	C11	I11		D11	I10
	C12	I13		D12	I12
	C13	I15		D13	I14
	C14	I17		D14	I16
	C15	I19		D15	I18

Page Top

Pro-face's website for advanced HMI products

Specifications of PFXLM4B01DAC (Rear Module Analog / Source Output Type)

Display Specifications

General Specifications

Environmental Specifications

Digital Inputs

Digital Input Characteristics

High Speed Counter Input Characteristics

Digital Outputs

Transistor Output Characteristics

Pulse Output/PWM Output/High-speed Counter (Synchronize Output) Characteristics

Analog Inputs and Analog Outputs

Analog Input Characteristics

Temperature Input (Temperature Probes) Characteristics

Temperature Input (Thermocouple) Characteristics

Analog Output Characteristics

Terminal Blocks
